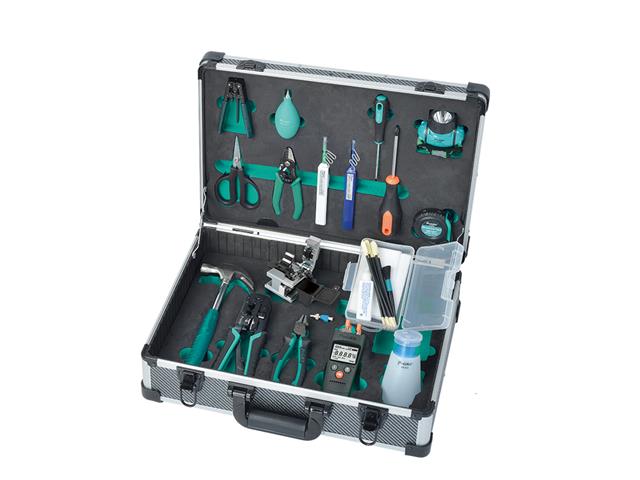

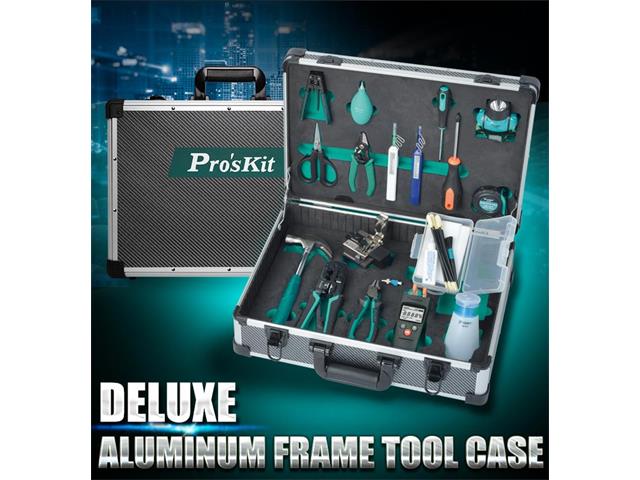

Professional FTTH tool kit contains the most essential tools for fiber optic fusion splice, Mechanical Splicing and patch cord termination procedure. Ideal for fiber optic installation and maintenance works.

Includes 4 in 1 fiber optic power mulitmeter, 1.25mm/2.5mm cleaning tool, fiber stripper, drop cable stripper, kevlar scissors, optical Fiber Cleaver, 6P/8P crimper, LED head light.

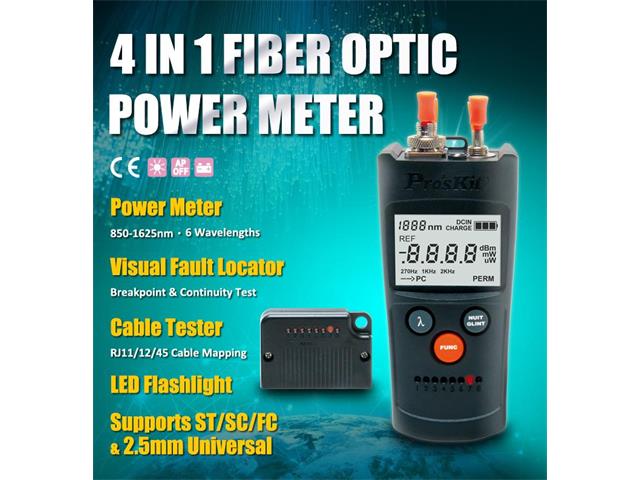

PRK MT-7602 4 in 1 fiber optic power mulitmeter

• Fiber optic power meter
• Cable tester
• Visual fault locator
• LED flashlight

PRK FB-C008/FB-C009 1.25/2.5mm One click cleaner

• 800 cleans lot FC/PC, ST, Sc or LC Connectors
• Easy pushing motion
• 1800 rotates cleaning system
• Extendable nozzle
• Indication Window

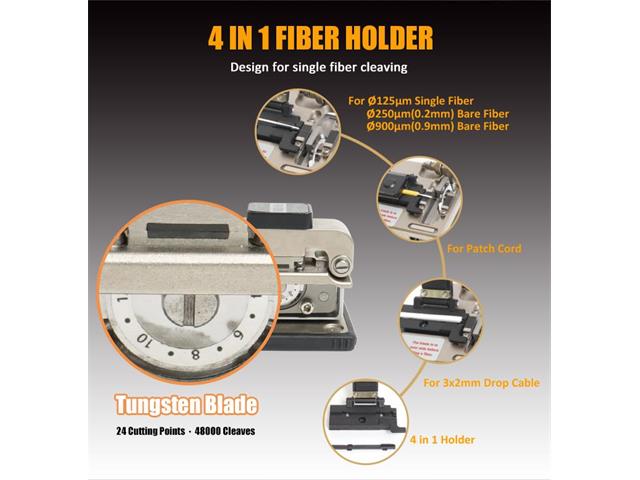

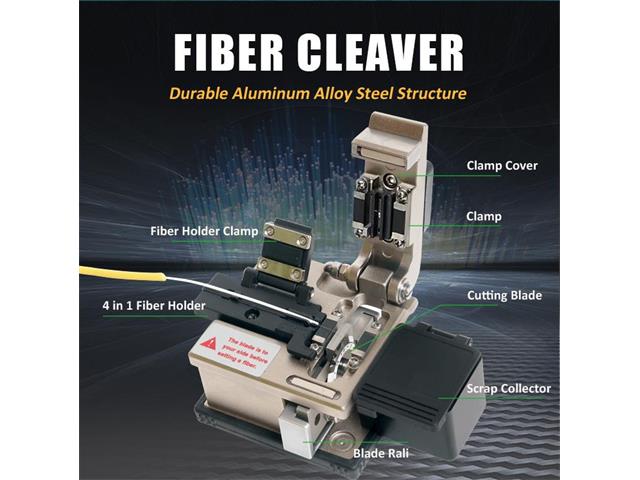

PRK FB688 Fiber Cleaver

• 16 Cutting Location for each blade. Blade life up to 48000 times
• Body : Zinc alloy anodic treatment
• Dimensions: 62x60x56mm
• Blade : Tungsten
• Cladding Diameter : 125 µm
• Blade Dimension : 20xt2.0mm
• Cleave Length : 1020 mm
• Cleave Angle : 0.8°

PRK CP-376TR 4P/6P/8P Telecom Crimping Tool

• Body : S45C
• Handle : Black:T.P.R Green:PP
• Application : 8P8C/RJ45, 6P2C/6P4C/6P6C RJ11/RJ12
• Modular Plugs, RJ22 4P2C/4P4C handset modular plugs

CP-FB01 FTTH Drop Cable Stripper

• Body: Zinc Alloy Steel
• Blade : CR12
• for 3.1x2.0mm Drop Cable

PRK 8PK-326 Fiber Optical Stripper

• Strips 125 micron glass fiber with 250 micron buffer coating
• Material: S50C

Contents

• PRK MT-7602 : 4 in 1 Fiber Optic Power Mulitmeter
• PRK FB-C008/FB-C009 : 1.25/2.5mm One click Cleaner
• PRK FB-1688 : Fiber cleaver
• PRK CP-376TR : 4P/6P/8P Telecom Crimping Tool
• PRK CP-FB01 : FTTH Drop Cable Stripper
• PRK 8PK-326 : Fiber Optical Stripper
• PRK 1PK-067DS : Dual Color Side Cutting Plier (165mm)
• PRK 9SD-207B : Pro-Soft Screwdriver (+#2 6x100mm)
• PRK 9SD-201A : Pro-Soft Screwdriver (-3.0 3.0x75mm)
• PRK DK-2043 : Fiber Optic Kevlar Cutter
• PRK DK-2060 : Auto Stop Measuring Tape
• PRK MS-018 : Leak proof dispenser pump bottle
• PRK FL-528 : 1W LED Head Light
• PRK PD-2612 : 8 OZ Curved Claw Hammer
• PRK SB-1592 : Component Storage Box(145x92x40mm)
• PRK MS-153A : Bulb Blower (Φ42mm)
• PRK 8PK-C002 : Foam Swabs Cleaning Kit
• PRK 5MT-7601-LC : Fiber Optical Power Meter LC Adaptor
• PRK 9PK-153 : Brush

1. Datasheet - PK-9458
