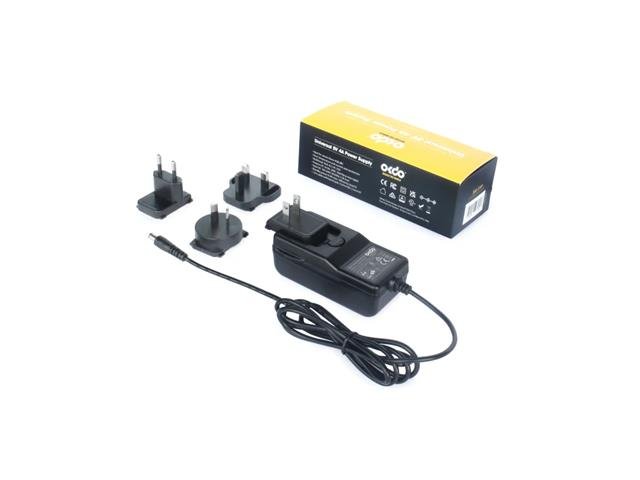

Switch Mode Power Supply Unit DC5V 4A Plug-In 2.1mma DC Plug, I/P:100 → 240VAC, 4 x Interchangeable Heads : UK, EU, AUS & US Head, 1.5M Cable
Switch Mode Power Supply Unit
Overview
The OKdo fixed head OD5.5 power supplies are ideal for powering the latest SBCs in the market like the Raspberry Pi 4 and NVIDIA Jetson Nano 2GB. Rated for 15 W in a small formfactor, this power supply has in addition to short circuit, over current and over voltage protection also come with over temperature protection for your peace of mind.
Specifications
- Output voltage range : 5 VDC
- Minimum load current : 0A
- Nominal load current : 4.0A
- Maximum power : 20W
- Load regulation : 4.8-5.2V
- Line regulation : ±5%
- Ripple & noise : ≤120mVp-p
- Rise time : 100ms Max. At 100Vac input and output Max. Load
- Turn-on delay: 5 second Max .At 100Vac input and output Max. Load
- Protection
- Short circuit protection
- Overcurrent protection
- Over temperature protection
- Efficiency : 83.08% minimum
- Output cable : 1.5meter long, customization is available upon request
Input:
- Voltage range
- 100 ~ 240Vac (rated)
- 90 ~ 264Vac (operating)
- Frequency : 50/60Hz
- Current : 1.5A maximum
- Power consumption (no load) : 0.1W maximum
- Inrush current : 60 A mps Max Cold start at 240Vac input ,with rated load and 25°C ambient.
- AC leakage current : 0.25mA Max .At 240Vac input
- AC plug type : EURO / UK / US / AU
Environment
- Operating ambient temperature : 0 ~+45°C
- Storage temperature : -10°C ~ +55°C (With enclosure)
- Relative Humidity : 5%(0°C)~90%(40°C)
Downloads
Additional Information
| Device |
Power Supply Unit |
| Type |
Switch Mode |
Power your devices with the PSU SWM 5V 4A switch mode power supply, designed for efficiency and safety. Featuring interchangeable heads for UK, EU, AUS, and US compatibility, this compact 20W power supply is perfect for Raspberry Pi and NVIDIA Jetson Nano. Enjoy peace of mind with built-in short circuit and overcurrent protection, all while benefiting from a 1.5-meter cable for easy setup.
