PTZ XY 9045AHD100 2MP - CCTV Products & Accessories -

PTZ XY 9045AHD100 2MP

SKU: PTZ XY 9045AHD100 2MP

BRAND: Xytron


Sold Out

Collections: Security, Access Control & Surveillance, Xytron

Type: CCTV Products & Accessories

Category: PTZ Cameras

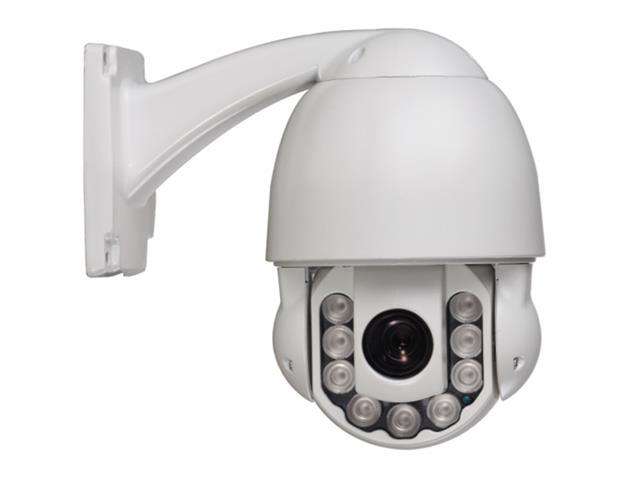

XYTRON 4,5" 2MP PTZ 4 IN 1 Speed Dome Camera

Overview

Features

  • AHD/CVI/TVI/CVBS IR Speed Dome
  • 4.5 inch Outdoor Middle mini Speed Dome camera
  • 10Xoptical zoom 5-50mm Optical zoom
  • Real time transmission,lossless video
  • High definition 1080P
  • Long distance transmission up to 500 meters
  • OSD IR distance 60M
  • Total Metal body construction, IP66 rate protection
  • IR illumination & power consumption is variable dependant on zoom factor
  • PTZ XY 9045AHD100 2MP

Specification

    Camera

  • Sensor : 1/3" Progressive 2441+SONY323
  • Effective Pixels : 1080P(1080X1980)
  • Total Pixels : 2.0MP
  • Lens : 10X optical zoom
  • Iris : F1.6 ~F2.8
  • View of Angle : H:51.8°(W)~5.86° (T) V:39.1° (W) ~4.4° (T)
  • Min. Illumination : Color: 0.1 Lux \ B/W: 0.01Lux
  • WDR : Digital WDR
  • BLC : On / Off
  • Picture Effects : Auto / Color / B & W / Negative
  • D/N : IR-CUT
  • S/N Ratio : =50dB

    • Dome

  • Pan Range : 360°continuous rotation
  • Tilt Range : 0°~93°
  • Manual Pan Speed : 0.02~45°/S
  • Manual Tilt Speed : 0.02~45°/S
  • Preset Points : 128
  • Guard Tours : 1groups
  • Guard Points : Max.16 Points, dwell time user selectable
  • Operating Temperature : Outdoor: -40°~ +60°
  • Operation Menu : English
  • Pan and Tilt Position Display : Support
  • Humidity : =95% Non Condensing
  • Power : DC12V
  • Consumption : =15W
  • Lightning Protection : Transient Voltage 6000V
  • Video Interface Output : CVI/TVI/AHD
  • Communication Mode : RS485 (+/-)/ Coaxial Cable
  • Connection : Coaxial Cable
  • Related Validation : IP66,CE,FCC,RoHs

    • IR Parameters

  • Auto Control IR LED PWM
  • LED Array 42Mil 9PCS
  • IR Distance : Up to 60 meters
  • Support Ambient Light Detection : IR Illumination on 1-15 Grades Selectable;
