Overview

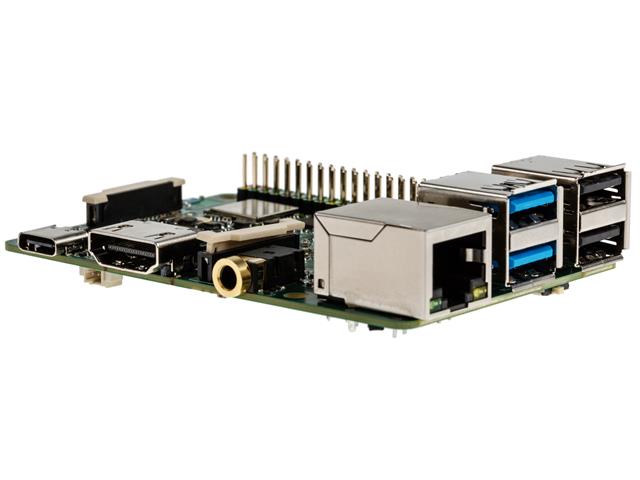

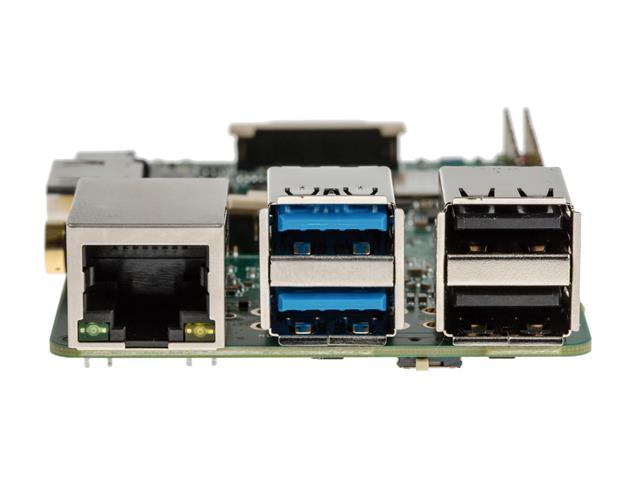

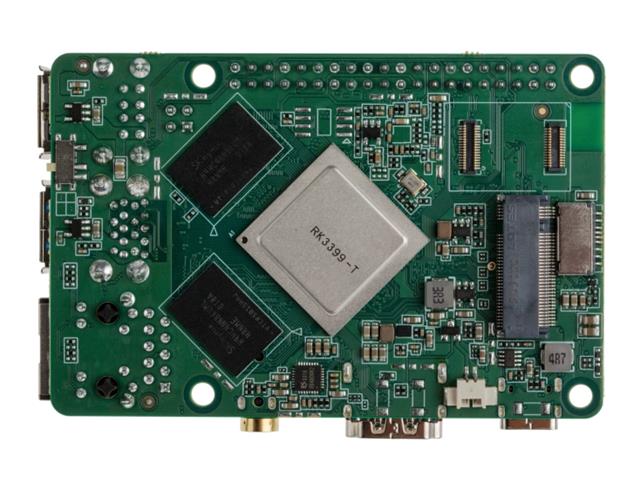

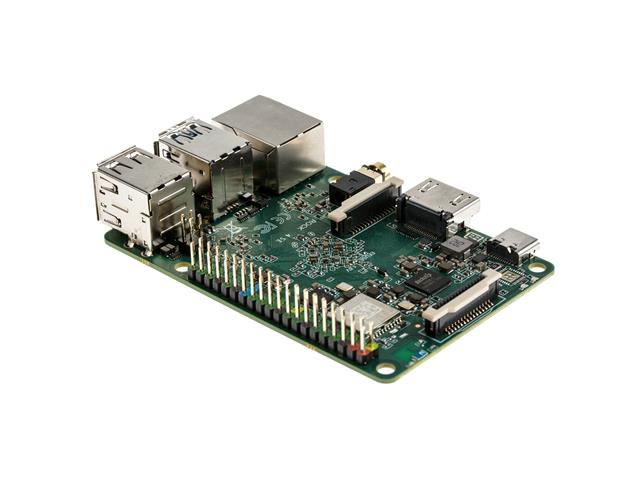

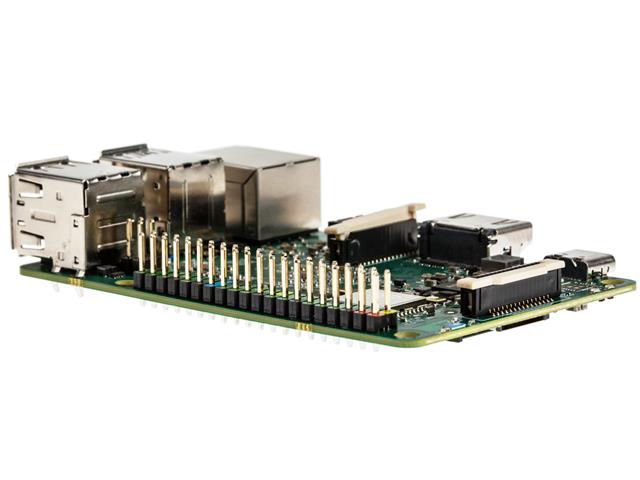

ROCK 4 SE is a reliable and high-performing single-board computer that offers class-leading performance and superior hardware as standard. This special edition board is based on a powerful Rockchip RK3399-T hexa-core processor, big.LITTLE™ Arm® Dual Cortex-A72® CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM. With onboard RTC, WiFi, Bluetooth, antenna, audio jack, 4K HDMI port, and many more, ROCK 4 SE is the perfect Raspberry Pi alternative, that provides an incredible performance solid as a ROCK!
Features
- ROCK 4 SE - a robust, versatile special edition single-board computer
- High-performing Hexa-core Rockchip RK3399-T processor
- Hexa-core processor with big.LITTLE™ Arm® Dual Cortex-A72® CPU, Quad-core Cortex-A53 and Arm Mali™ - T860MP4 GPU
- Available in a 4GB 64bit LPDDR4 RAM option
- Expandable with eMMC module or SSD through m.2 connector
- Onboard RTC, WiFi, Bluetooth, Antenna, Audio jack (headphone and headset), 4K HDMI port
Specifications
| ROCK 4 SE Board |
| SOC |
Rockchip RK3399-T |
| Processor |
Arm® big.LITTLE™ technology (Dual Cortex®-A72@1.5GHz, Quad Cortex-A53@1.0GHz)
|
| GPU |
Arm Mali™ – T860MP4 GPU, supporting OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11
|
| Memory |
Dual channel (64bit) 4GB LPDDR4 RAM
|
| Power Req |
USB Type-C™ PD/QC 9-12V
|
| HDMI |
1 x 4k@60fps HDMI
|
| USB |
2 x USB 2.0
1 x USB 3.0, 1 x USB 3.0 OTG (Switchable) |
| Audio Ports |
3.5mm jack, analogue stereo output, microphone input |
| Connectivity |
WiFi 5/BT 5.0, BLE, Gigabit Ethernet |
| MIPI |
1 x 2 lane DSI/1 x 2 lane CSI |
| Storage |
Micro SD / M.2 (M key) / eMMC |
| EMMC |
B2B connector |
| UARTS |
2 x UART |
| RTC |
YES (support for external battery)
|
| Software |
ARMv8 Instruction Set
Debian/Ubuntu Linux support
Android 7.1/Android 9.0/Android 10/Android 11 support
GPU-enabled AI stack such as Caffe
Hardware access/control library for Linux/Android
|
| Temperature |
Operation Temperature: 0~50 ℃/ Storage Temperature: -20~80 ℃ |
Additional Information
| Device |
Computer Rockchip |
| Type |
4GB | Single Board |
| References |
Get Started with the ROCK 4SE
Need some inspiration to help you create amazing applications with your brand-new ROCK 4SE? Check out our getting started guides for the ROCK 4SE on ubuntu and debian
|
