Okdo Rock 5 Model B 16GB Single Board Computer Rockchip RK3588 SoC, ARM DYNAMIQ Quad Cortex-A76 @ 2.2/2.4GHz, 16GB 64bit LPDDR4RAM, Quad Cortex-A55 @ 1.8GHz CPU, 2xUSB2.0, 1xUSB3.0, 1xUSB3 OTG/Host Port, 2xHDMI, Micro SD /eMMC, PSU:USB-TypeC5V3A
16GB Single Board Computer Rockchip
Overview

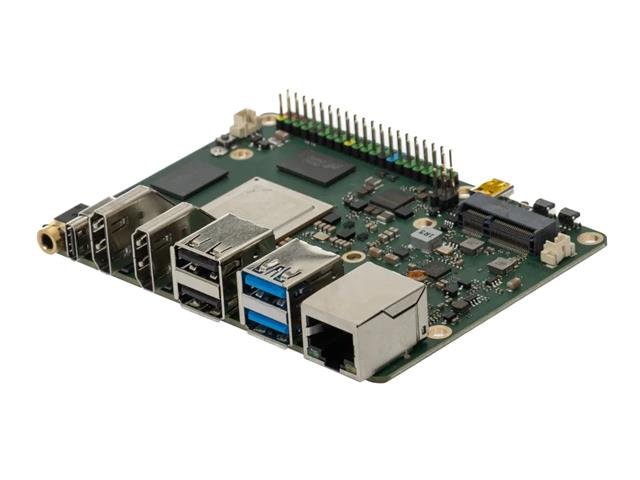

The Radxa ROCK 5 Model B (ROCK 5B) is a Single Board Computer (SBC) in a compact form factor
packed with a wide range of class‐leading functionality, features and expansion options. The ROCK
5B is an ideal choice for makers, IoT enthusiasts, hobbyists, gamers, PC users and everyone who need
an extremely highly specified platform with outstanding performance and reliability.
Specifications
Hardware
- Rockchip RK3588 SoC
- Quad Cortex®‐A76 @ 2.2/2.4GHz and a quad Cortex®‐A55 @ 1.8GHz based on Arm® DynamIQTM
configuration
- Arm MaliTM G610MC4 GPU supporting:
- OpenGL® ES1.1, ES2.0, and ES3.2
- OpenCL® 1.1, 1.2 and 2.2
- Vulkan® 1.1 and 1.2
- Embedded high performance 2D image acceleration module
- NPU supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing power is up
to 6TOPs
- 64bits LPDDR4x RAM options: : 16GB
- Able to provide 4 display outputs via two HDMI, one DP (type C) and one MIPI DSI
- H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps
- H.264/H.265 multivideo decoder up to 8K@30fps

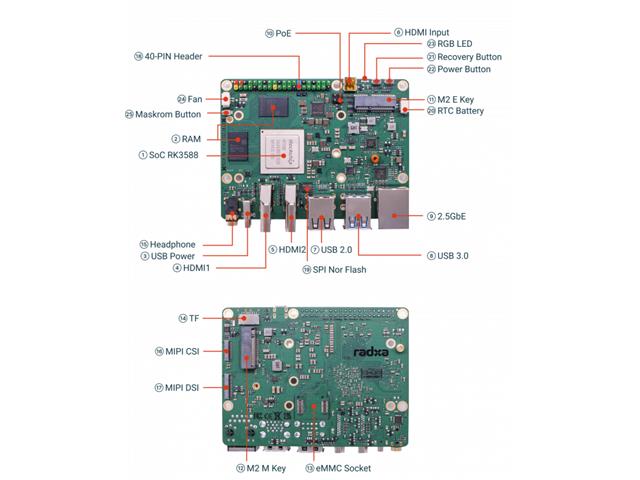

Interfaces
- 1x Full function USB Type‐CTM port supporting:
- PD Version 2.0
- DP display up to 4Kp60
- USB 3.0
- 1x Micro SD Card
- 2x Standard HDMI output ports, one supporting displays up to 8Kp60 resolution, one supporting
up to 4Kp60
- 1x Micro HDMI input port, supporting up to 4Kp60 display input
- 2x USB2 Type A HOST ports
- 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
- 1x 2.5 Gigabit Ethernet port (supports PoE with add‐on PoE HAT)
- 1x M.2 M Key with PCIe 3.0 four‐lane support
- 1x M.2 E Key with PCIe 2.1 one‐lane, SATA, SDIO, PCM, UART support
- 1x eMMC module connector for eMMC 5.1 support. The eMMC module shall be larger than 8GB.
- 1x Camera port (1x four‐lane MIPI CSI or 2x two‐lane MIPI CSI)
- 1x Display port (four‐lane MIPI DSI)
- Miscellaneous
- 1x RTC battery connector
- 1x PWM fan connector
- 1x Power button
- 1x Recovery button
- 1x RGB power/status/user LED
- 2x heatsink mounting holes
- 40 pin 0.1” (2.54mm) header supporting a wide range of interface options:
- 2 x UART
- 2 x SPI bus
- 2 x I2C bus
- 1 x PCM/I2S
- 1 x SPDIF
- 1 x PWM
- 1 x ADC
- 6 x GPIO
- 2 x 5V DC power in/out
- 2 x 3.3V power out
Software
- ArmV8 Instruction Set
- Debian/Ubuntu Linux support
- Android 12 support
- OpenFyde OS(Chromium OS fork) support
- RKNPU2 NPU software stack
- Hardware access/control library for Linux/Android
