RADXA ROCK 5 MODEL B 8 GB

Name: RADXA ROCK 5 MODEL B 8 GB - Communica [Part No: RADXA ROCK 5 MODEL B 8 GB]
Brand: OKdo ROCK
SKU: RADXA ROCK 5 MODEL B 8 GB
Price: 3211 ZAR
Availability: OutOfStock

SKU: RADXA ROCK 5 MODEL B 8 GB

BRAND: OKdo ROCK

Sold Out
R 3,692.65_{(inc VAT)}
R 3,211.00_{(ex VAT)}

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Iot, Single Board Computer Rockchip

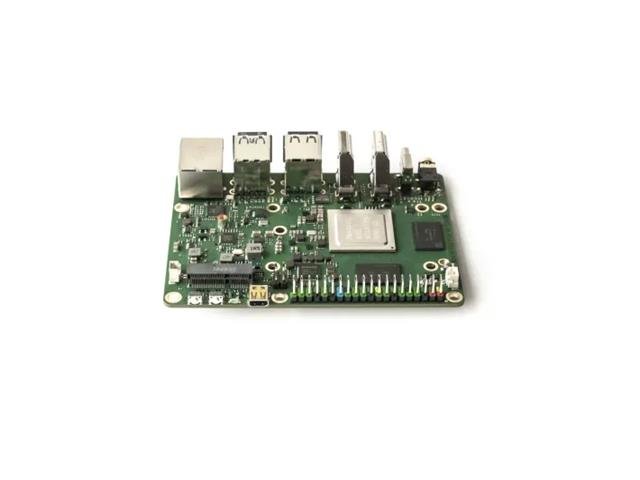

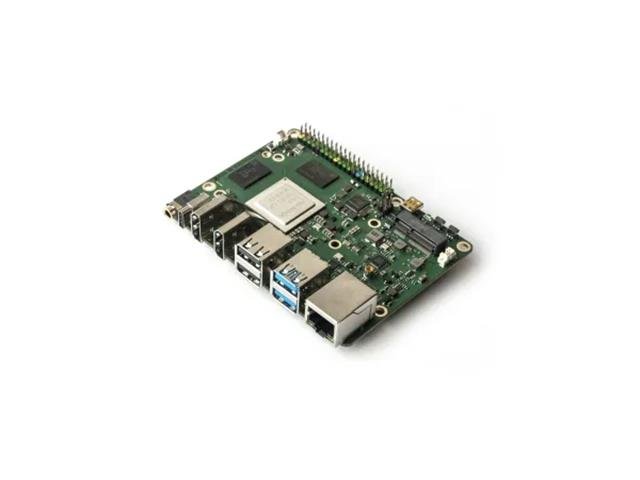

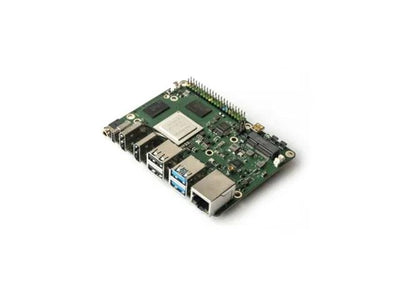

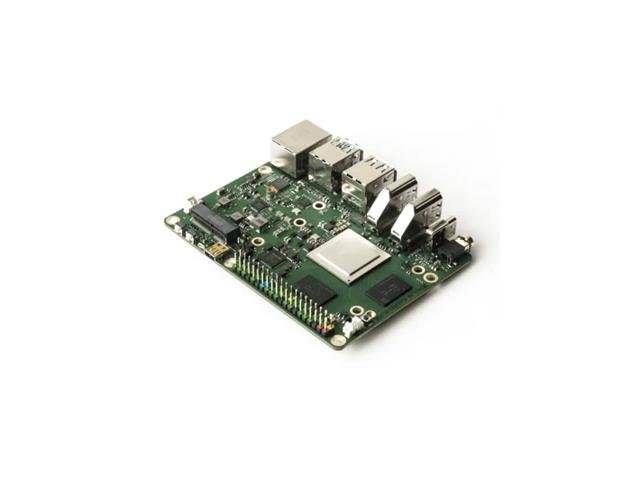

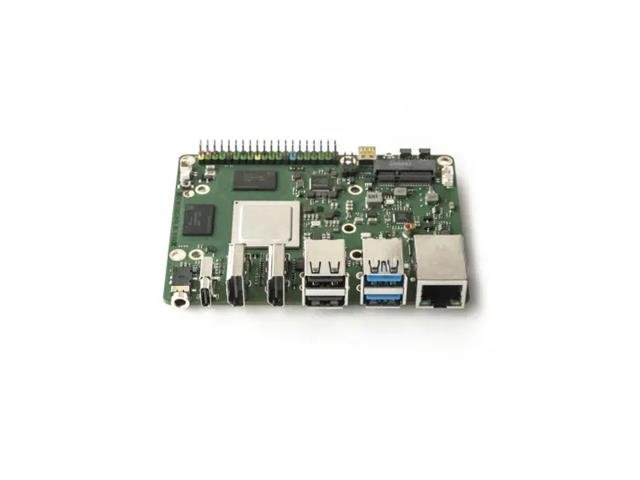

ROCK 5 Model B 8 GB Single Board Computer

Model B 8 GB Single Board Computer

Features

ROCK 5B, the new next-gen single board computer
Based on the powerful Rockchip RK3588 SoC
Octa-core processor with Arm® DynamIQ™ Quad Cortex® A76, Quad Cortex® A55 CPU, and Arm Mali™ G610MC4 GPU
8GB 64-bit RAM and eMMC socket
Power on/off button for performing quick, easy, and safe shutdowns without the risk of corrupting storage
The first SBC supporting up to 8Kp60 resolution tailor-made for advance multimedia applications
Built-in Real-Time-Clock, Dual HDMI and USB C port
Micro-HDMI input port supporting up to 4Kp60 resolution

Interfaces

1x Full function USB Type
2x USB2 Type A HOST ports
1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
1x 2.5 Gigabit Ethernet port (supports PoE with add‑on PoE HAT)
1x M.2 M Key with PCIe 3.0 four‑lane support
1x M.2 E Key with PCIe 2.1 one‑lane, SATA, SDIO, UART support
1x eMMC module connector for eMMC 5.1 support
1x Camera port (4‑lane MIPI CSI)
1x Display port (4‑lane MIPI DSI)
40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in/out, 2 x 3.3V power out.
Miscellaneous: 1x RTC battery connector, 1x PWM fan connector, 1x Power button, 1x Recovery button, 1x RGB power/status/user LED, 2x heatsink mounting holes

Specifications

SoC	Rockchip RK3588
Processor	Arm DynamIQ (Quad Cortex – A76 @ 2.2/2.4GHz, Quad Cortex – A55 @ 1.8GHz)
GPU	Arm Mali G610MC4 GPU, supporting OpenGL® ES1.1, ES2.0, and ES3.2, OpenCL® 1.1, 1.2 and 2.2, Vulkan® 1.1 and 1.2, and embedded high-performance 2D image acceleration module
Memory	8GB 64bit LPDDR4 RAM
Power Requirements	USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A. 5V Power applied to the GPIO PIN 2 & 4. The recommended power source capacity is at least 24W without a M.2 SSD or 36W with a M.2 SSD.
HDMI	Dual HDMI ports supporting displays up to 8Kp60 resolution and 4Kp60 Micro-HDMI input port supporting up to 4Kp60 resolution
USB	2x USB2 HOST ports 1x USB3 HOST port 1x USB3 OTG/HOST port
MIPI	1x 4 lane DSI, 1x 4 lane CSI
Storage	Micro SD / eMMC
UARTS	2x UART
On/Off Power Button	YES
Software	Full implementation of the Arm architecture v8 instructions set Debian/Ubuntu Linux support Android 12 support RKNPU2 NPU software stack Hardware access/control library for Linux/Android
Temperature	Operation temperature: 0~50 ℃ Storage temperature: -20~80 ℃

Downloads

Datasheet - RADXA ROCK 5 MODEL B 8 GB

Additional Information

Device	Single Board Computer
Type	Model B \| 8 GB
