Plane welding technology

• The user-friendly design of the tail welding line is arranged 180 degrees outwards, and the semi-circular opening makes the welding work easy.

Integrated design

• 7U thick gold-plated banana plug, straight plug design with high current banana plug, larger contact area, thicker male shrapnel.

Insulation flame retardant new upgrade

• Insulating material, non-flammable, ensuring product stability, advanced sheath casting technology and banana plug are fully and closely integrated.

Applications:

This series of products can be used for lithium batteries, controllers, motors, battery protection boards, solar street lights, unmanned aerial vehicles, electric vehicles, energy storage equipment, charging piles and other qualified high-current connection requirements.

• Current Rating: 150A current for extended periods without exceeding 80DegC
• Type of Connector: DC supply

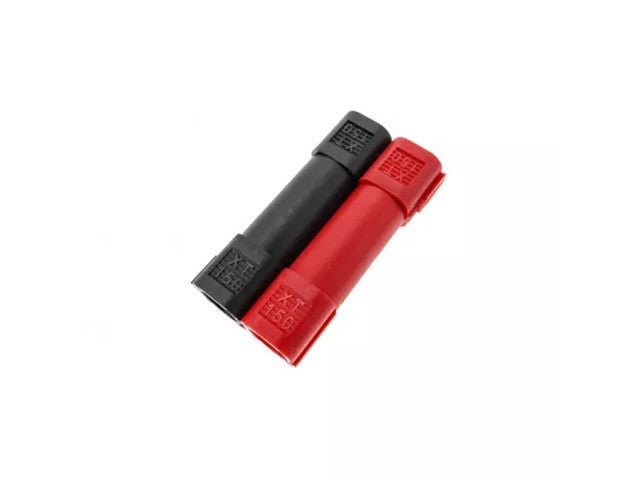

• Connector Series: XT150
• Contact Plating: Gold flash
• Flammability Rating: UL94V-0
• Operating Temperature: -20 ~ 120°C
• Rated Voltage: 500V
• Spatial Orientation: Straight
• Contact Material: Brass
• MechanicalDdurability: 1000 cycles
• Body Material: Polyamide
• Wire Size: 8AWG
• Net Weight: 17g
