RKC 30/11

SKU: RKC 30/11

BRAND: Hirschmann

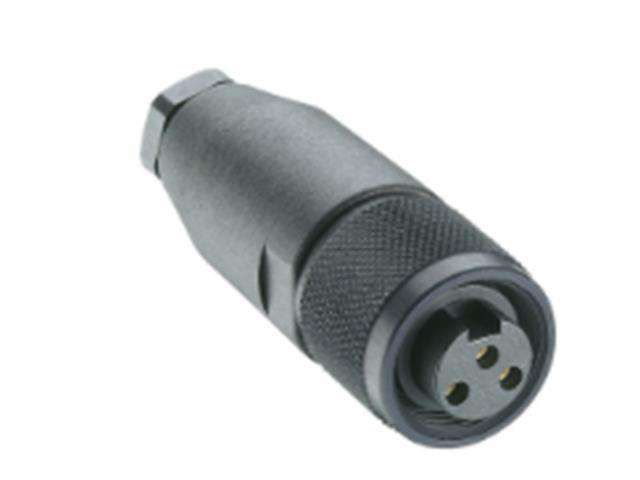

Circular Connector 7/8" Cable Female Straight. 3 Pole Screw Term PG11 Cable Entry IP67

Overview

Features

Specification



  • Product Sub Family: 7/8" Circular Connectors
  • Connector Type: Field Attachable
  • Type of Contact / Gender: female
  • Connector Design: straight
  • Number of Pins: 3(2+PE)
  • Shielding: Unshielded
  • Attachment Type: Coupling nut with externel threads
  • Rated Voltage: 250 V AC/DC
  • Operating Voltage: 230 V AC/DC
  • Rated Current: 12 A
  • Contact Resistance: ≤ 10 mOhm
  • Insulation Resistance: ˃ 10^9 Ohm
  • Type of Connection: screw terminal
  • Cable Gland: PG 11
  • Conductor Cross Section: max. 1.5 mm²
  • Ambient Temperature (Operation): -40 °C to +90 °C
  • Protection Degree / IP Rating: IP67
  • Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
