RKC 40/9

Name: RKC 40/9 - Communica [Part No: RKC 40/9]
Brand: Belden
SKU: RKC 40/9
Price: 393.50 ZAR
Availability: InStock

SKU: RKC 40/9

BRAND: Belden

In Stock
R 452.53_{(inc VAT)}
R 393.50_{(ex VAT)}

Collections: Connectors

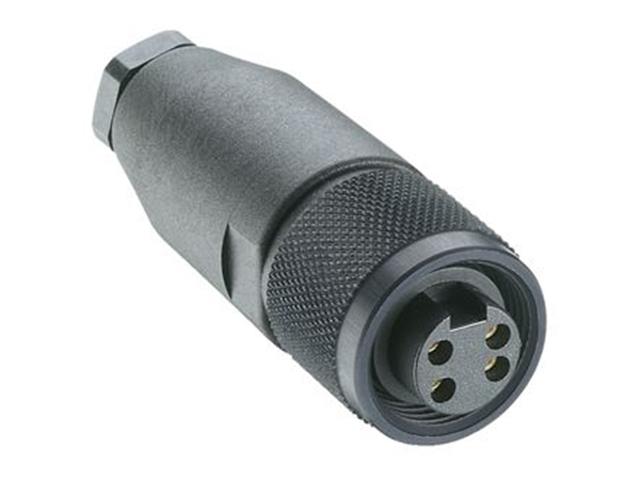

Circular Connector 7/8" Cable Female Straight. 4 Pole Screw Termination PG9 Cable Entry IP67

7/8" Cable Female Straight Circular Connector

Product Family	Power Connector
Product Sub Family	7/8"
Connector Type	Field Attachable
Type of Contact / Gender	female
Connector Design	straight
Number of Pins	4
Shielding	Unshielded
Attachment Type	Coupling nut with external threads
Rated Voltage	250 V AC/DC
Operating Voltage	230 V AC/DC
Rated Current*	9 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Type of Connection	screw terminal
Cable Gland	PG 9
Conductor Cross Section	max. 1.5 mm²
Ambient Temperature (Operation)*	-40 °C to +90 °C
Protection Degree / IP Rating**	IP67
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)

RoHS Compliant	yes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect / disconnect under load.

Device	Connector
Type	7/8" \| Cable \| Female \| Straight \| Circular
Locking System	Screw
Degree of Protection	IP67
