RKTS4-288/10M

SKU: RKTS4-288/10M

BRAND: Belden Lumberg

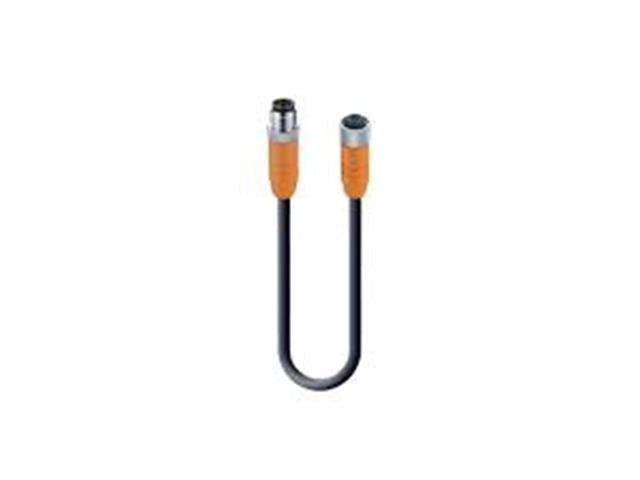

Cordset Shielded M12 A COD Female Striaght. 4 Pole Single End - 10M PUR Cable

M12 A COD Female Striaght

Specifications

  • Product Family: Sensor / Actuator Connectors
  • Product Sub Family: M12 Standard
  • Brand: Lumberg Automation
  • Connector Type: Cordset, single ended
  • Type of Contact / Gender: Female
  • Connector Design: Straight
  • Number of Pins: 4
  • Coding: A
  • Shielding: Shielded
  • Attachment Type: Coupling Nut
  • Rated Voltage: 60 V
  • Rated Impulse Voltage: 1.5 kV
  • Operating Voltage: 50 V AC / 60 V DC
  • Rated Current: 4 A
  • Contact Resistance: ≤ 10 mOhm
  • Insulation Resistance: ˃ 10^9 Ohm
  • Mating Cycles: ≤ 100
  • Ambient Temperature (Operation): - 40 °C - + 90 °C
  • Protection Degree / IP Rating: IP65, IP67, IP69K
  • Design Standard: IEC 61076-2-101
  • Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
  • Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

  • Contact Base Material: CuSn
  • Contact Plating: Cu/Au
  • Contact Bearer Material: PA
  • Contact Bearer Color: Black
  • Flammability Class (Contact Bearer): UL 94 V-0
  • Molded Body Material: TPU
  • Molded Body Color: Orange
  • Flammability Class (Molded Body): UL 94 HB
  • Attachment Material: CuZn
  • Attachment Plating: Nickel-plated
  • Shielding Material: CuZn, tin-plated
  • O-Ring Material: FKM, green

Additional Technical Data

  • Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight

Cable Data

  • Cable Number: 288
  • Number of Wires: 4
  • Minimal Bending Radius (Fixed Inst): ˃ 5 x D
  • Minimal Bending Radius (Flexible Inst): ˃ 10 x D
  • Cycles (Bending): ˃ 5 M
  • Cycles (Torsion): ˃ 1 M @ ± 180 °/1 m
  • Conductor material: Cu
  • Cable Jacket Material: PUR
  • Cable Jacket Color: black
  • Cable Diameter D: ø 5.50 ± 0.20 mm
  • Wire Insulation Material: PP
  • Insulated Wire Diameter: ø 1.30 mm
  • Overall Shield (Cable): Mesh wire
  • Ambient Temperature (Fixed Installation): - 50 °C - + 80 °C
  • Ambient Temperature (Flex Installation): - 25 °C - + 80 °C
  • Ambient Temperature (Drag Chain Inst): - 25 °C - + 60 °C
  • UL Cable Type: AWM: 20549

Downloads

Additional Information

Device Connector
Type M12 | A COD | Female | Straight
