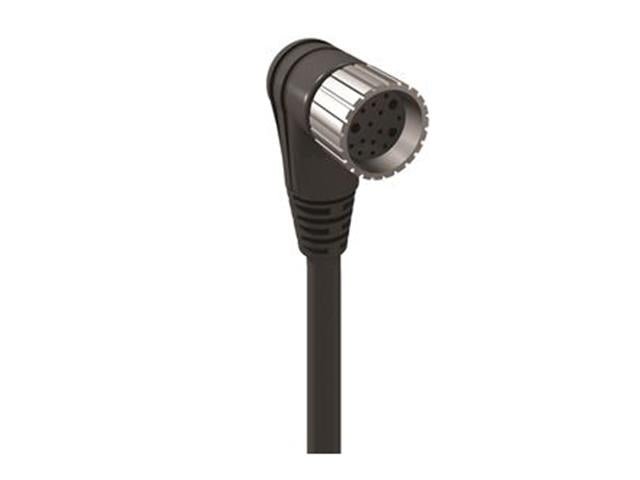

RKWU 12 - 256/15M - Actuator/Sensor Cable -

RKWU 12-256/15M

SKU: RKWU 12-256/15M

BRAND: Belden Lumberg


Sold Out

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M23 Power Cordset

M23 Cordsets Single Ended Female Angled 12 Pole 15m 18AWG PUR Cable

Single Ended Female Angled M23 Cordsets

Specifications

Product Family: Power Connector
Product Sub Family: M23 Power
Brand: Lumberg Automation
Connector Type: Cordset, single ended
Type of Contact / Gender: female
Connector Design: angled
Number of Pins: 12
Shielding: Unshielded
Attachment Type: Coupling Nut
Rated Voltage: 125 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 120 V AC/DC
Rated Current*: 8 A
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: -25°C to +80°C
Protection Degree / IP Rating**: IP67
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: II acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material: 8 x CuSn/4 x CuZn
Contact Plating: Cu/Au
Contact Bearer Material: PA 66
Contact Bearer Color: black
Flammability Class (Contact Bearer): UL 94-HB
Molded Body Material: TPU
Molded Body Color: black
Flammability Class (Molded Body): UL 94-HB
Attachment Material: CuZn, nickel-plated
O-Ring Material: FKM

Cable Data

Cable Number: 256
Conductor Size: 8x0.5mm² + 3x1.0 mm²
Number of Wires: 11
Minimal Bending Radius (Fixed Inst): ˃ 5 x D
Minimal Bending Radius (Flexible Inst): ˃ 10 x D
Cycles (Bending): ˃ 2 M
Conductor material: Cu
Cable Jacket Material: PUR
Cable Jacket Color: black
Cable Diameter D: Ø 9.30 ±0.20 mm
Wire Insulation Material: PP
Insulated Wire Diameter: 8x Ø1.45 mm + 3x Ø1.95 mm
Ambient Temperature (Fixed Installation): -50°C to +80°C
Ambient Temperature (Flex Installation): -25°C to +80°C
Ambient Temperature (Drag Chain Inst): -25°C to +60°C
UL Cable Type: AWM: 20549
Flammability Class (Cable Jacket): DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2; flame-retardant

Downloads

Additional Information

Device Cordsets
Type Single Ended | Female | Angled | M23
