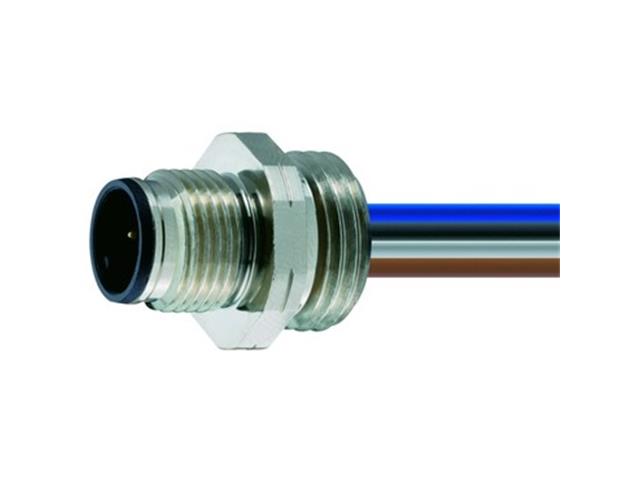

Circuar Connector M12 Panel Male A COD 5 Pole Front Mount M16X1,5 - 0,5M Cable Pigtail Unshielded
M12 Panel Male Circuar Connector
Specifications
- Product Family: Sensor / Actuator Connectors
- Product Sub Family: M12 Standard
- Mating Side: M12
- Connecting Side: Stranded Wires
- Brand: Lumberg Automation
- Connector Type: Receptacle
- Type of Contact / Gender: Male
- Connector Design: Front Mount

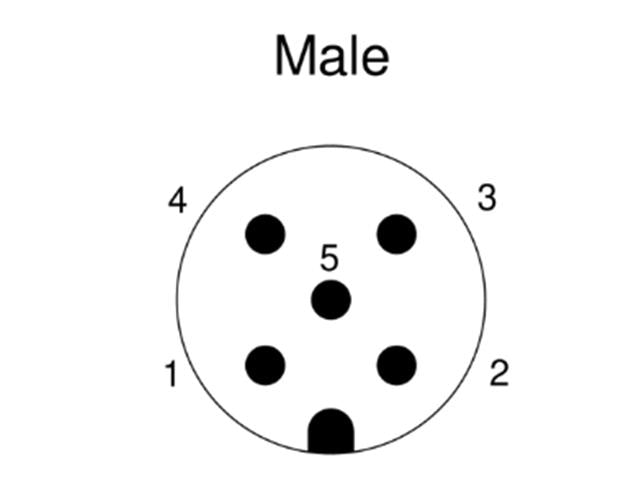

- Coding: A
- Attachment Type: Screw-Locking
- Rated Voltage: 60 V
- Rated Voltage (UL): 30 V AC/DC
- Rated Impulse Voltage: 1.5 kV
- Operating Voltage: 50 V AC / 60 V DC
- Rated Current*: 4 A
- Rated Current (UL)*: 4 A
- Contact Resistance: ≤ 10 mOhm
- Insulation Resistance: ˃ 10^9 Ohm
- Mating Cycles: ≤ 100
- Type of Connection: Solder
- Thread Size: M16x1.5
- Ambient Temperature (Operation)*: - 25 °C - + 85 °C
- Operating Temperature (UL): max. + 50 °C
- Protection Degree / IP Rating**: IP65, IP67, IP69K
- Design Standard: IEC 61076-2-101
- Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Clearance / Creepage Distance: DIN EN 60664-1 (2008/01); VDE 0110-1
- Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Materials
- Contact Base Material: CuZn
- Contact Plating: Cu/Au
- Contact Bearer Material: PA
- Contact Bearer Color: Black
- Flammability Class (Contact
- Bearer): UL 94 V-0
- Potted: yes
- Housing Material: CuZn
- Housing Plating: Nickel-plated
- Housing Color: Silver
- Attachment Material: CuZn
- Attachment Plating: Nickel-plated
- O-Ring Material: FKM
Additional Technical Data
- Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight
- Accessories to Order
- Separately: 000-025-049 Mounting Nut M16x1.5
