RST 4-RKWT 4-602/5 M

Name: RST 4-RKWT 4-602/5 M - Communica [Part No: RST 4-RKWT 4-602/5 M]
Brand: Belden Lumberg
SKU: RST 4-RKWT 4-602/5 M
Price: 1097.50 ZAR
Availability: OutOfStock

SKU: RST 4-RKWT 4-602/5 M

BRAND: Belden Lumberg

Sold Out
R 1,262.13_{(inc VAT)}
R 1,097.50_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Standard Sensor/Actuator Double-Ended Cordset

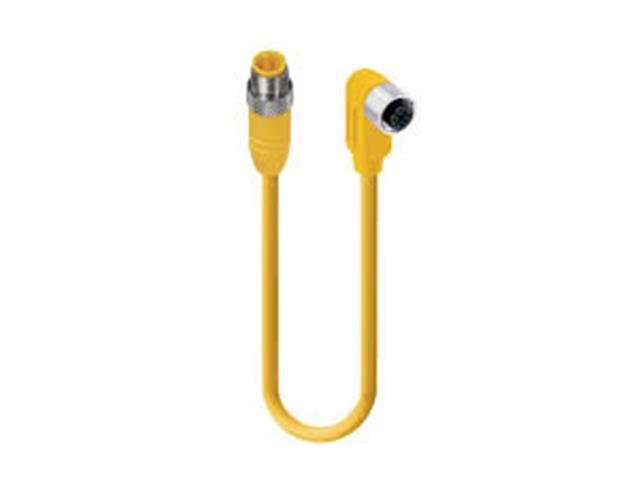

Cordset M12 A COD Male Straight. - 4 Pole Female Right Angled. 4 Pole Screw Lock -5M 18AWG PUR Yellow Cable Continuous Flex (DRAGCHAIN) (26636)

M12 A COD Male Straight Cordset

Specifications

Product Sub Family	M12 Standard
Type of Contact / Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	4
Coding	A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	TPU-GF
Contact Bearer Color	Yellow
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Yellow
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	Do not connect or disconnect under load.

Downloads

Datasheet - RST 4-RKWT 4-602/5 M

Additional Information

Device	Cordset
Type	M12 \| A COD \| Male \| Straight
