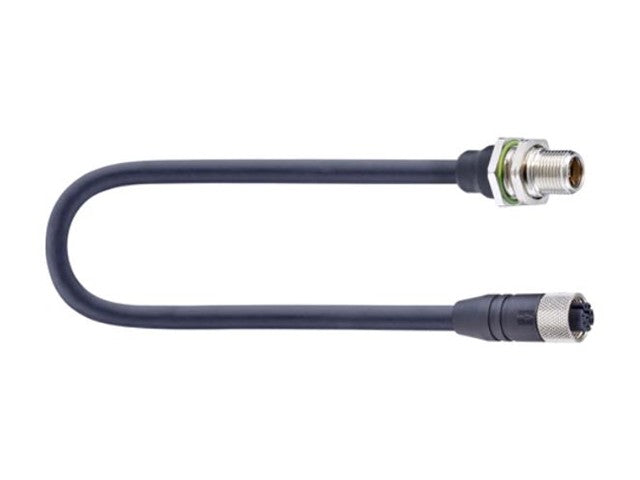

Connector Type

Cordset, double ended

Shielding Type

Shielded

Voltage Rating

50 V

Rated Voltage (UL)

50 V AC/DC

Rated Impulse Voltage

0.8 kV

Operating Voltage

50 V AC/ DC

Current Rating

Power: 6 A; Data: 0.5 A

Rated Current (UL)*

Power: 6 A; Data: 0.5 A

Data Transmission Type

Fast Ethernet Cat5e

Data Transmission Rate

100 Mbit/s

Side 1 Product Sub Family

M12 Hybrid

Side 1 Type of Contact/Gender

Male

Connector Design

Straight

Attachment Type

Coupling Screw

Number of Pins

8

Coding, Side 1

Y

Side 1 Contact Resistance

≤ 10 mOhm

Insulation Resistance

˃ 10^9 Ohm

Mating Cycles

≤ 100

Ambient Temperature (Operation)*

- 40 °C - + 90 °C

Operating Temperature (UL)

max. + 80 °C

Protection Degree / IP Rating**

IP65, IP67, IP69K

Side 1 Design Standard

IEC 61076-2-113

Side 1 Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Overvoltage Category

III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material

CuZn

Side 1 Contact Plating

Cu/Au

Contact Bearer Material

PBT-GF

Contact Bearer Color

Black

Flammability Class (Contact Bearer)

Data: UL 94 V-2 + Power: UL 94 V-0

Molded Body Material

TPU

Molded Body Color

Black

Flammability Class (Molded Body)

UL 94 HB

Attachment Material

CuZn

Attachment Plating

Nickel-plated

Shielding Material

GD-Zn, nickel-plated

Fastening Torque (Attachment)

M 12x1: (50-60) Ncm, hand-tight

Note

Do not connect or disconnect under load.

Cable Number

922

Conductor Size

Data: 4x0.15 mm² + Power: 4x0.75 mm²

Number of Wires

8

Minimal Bending Radius (Fixed Inst)

˃ 6 x D

Minimal Bending Radius (Flexible Inst)

˃ 10 x D

Cycles (Bending)

˃ 1-2 M

Conductor Material

Cu

Cable Jacket Material

PUR

Cable Jacket Color

black matt similarly RAL 9005

Cable Diameter D

ø 8.00 ± 0.3 mm

Wire Insulation Material

PP

Insulated Wire Diameter

Data: ø 1.15 ± 0.03 mm + Power: ø 1.70 ± 0.05 mm

Overall Shield (Cable)

Cu-ETP1 tinned

Element Shield

Shielding Foil

Ambient Temperature (Fixed Installation)

- 40 °C - + 90 °C (UL: + 80 °C)

Ambient Temperature (Flex Installation)

- 30 °C - + 70 °C

UL Cable Type

AWM: 20233

Cable Characteristics

Exclusion of dangerous materials; Exclusion of PVC and Silicone

Core Colors

Data: green, orange, white-green, white-orange + Power: brown, black, white, blue

Side 2 Product Sub Family

M12 Hybrid

Side 2 Type of Contact/Gender

Female

Connector Design, Side 2

Straight

Attachment Type, Side 2

Coupling Nut

Number of Pins, Side 2

8

Coding, Side 2

Y

Contact Resistance, Side 2

≤ 10 mOhm

Insulation Resistance, Side 2

˃ 10^9 Ohm

Mating Cycles, Side 2

≤ 100

Ambient Temperature (Operation), Side 2*

- 40 °C - + 90 °C

Operating Temperature (UL), Side 2

max. + 80 °C

Protection Degree / IP Rating, Side 2**

IP65, IP67, IP69K

Design Standard, Side 2

IEC 61076-2-113

Pollution Degree, Side 2

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Overvoltage Category, Side 2

III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material, Side 2

CuZn

Contact Plating, Side 2

Cu/Au

Contact Bearer Material, Side 2

PBT-GF

Contact Bearer Color, Side 2

Black

Flammability Class (Contact Bearer), Side 2

Data: UL 94 V-2 + Power: UL 94 V-0

Molded Body Material, Side 2

TPU

Molded Body Color, Side 2

Black

Flammability Class (Molded Body), Side 2

UL 94 HB

Attachment Material, Side 2

CuZn

Attachment Plating, Side 2

Nickel-plated

Shielding Material, Side 2

GD-Zn, nickel-plated

Fastening Torque (Attachment), Side 2

M 12x1: (50-60) Ncm, hand-tight
