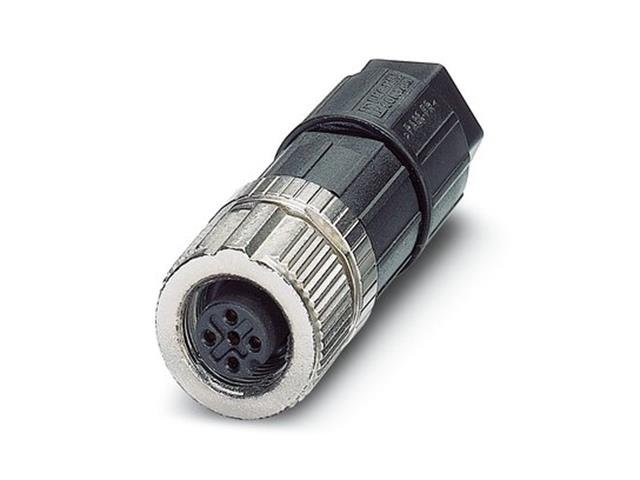

Circular Connector M12 A COD Cable Female Striaght. 5 Pole Push -Lock Spring Termination for Cable 4 - 8mm OD. Wire Gauge : 0,14 - 0,75mm² Phoenix 1424652
M12 A COD Cable Circular Connector
Specifications
- Product type : Circular connector (cable-side)
- Sensor type : Universal
- Number of positions : 5
- No. of cable outlets : 1
- Shielded : no
- Coding : A
- Cable outlet : straight
Insulation characteristics
- Overvoltage category : II
- Degree of pollution : 3
Dimensions
- Length : 58 mm
- Outside diameter : 4 mm ... 8 mm
- Diameter housing : 19 mm
Material specifications
- Color Handle area : black
- Flammability rating according to UL 94 : V0
- Seal material : NBR
- Material of grip body : PA 6.6
- Contact material : CuSn
Electrical properties
- Rated surge voltage : 1.5 kV
- Contact resistance : ≤ 5 mΩ
- Insulation resistance : ≥ 100 MΩ
- Nominal voltage UN
- Nominal current IN : 4 A (2 A when using 0.14 mm2 conductors)
