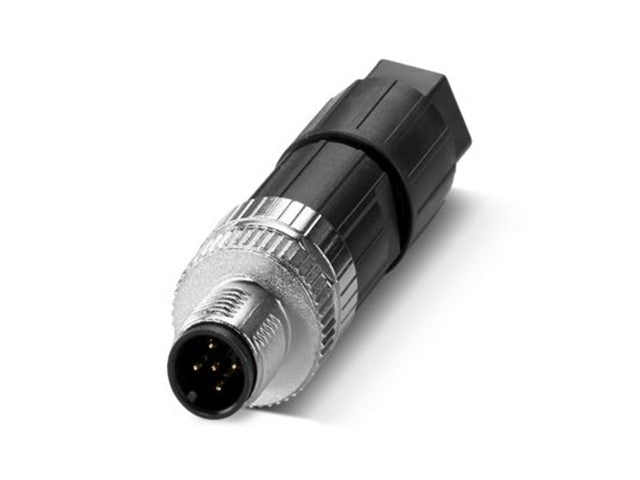

Connector, Universal, 5-position, unshielded, Plug straight M12, coding: A, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm (1424649)
M12 Circular Connector
Specifications
Product Type: M12 Circular Connector, Cable-Side
Connector Type: Plug
Gender: Male
Number of Positions: 5
Coding: A-Coded
Shielding: Unshielded
Cable Outlet: Straight
Connection Type: Push-Lock Spring Connection
Connector Thread: M12
Rated Voltage: 48 VAC / 60 VDC
Rated Current: 4 A (2 A with 0.14 mm² conductors)
Rated Surge Voltage: 1.5 kV
Contact Resistance: ≤5 mΩ
Insulation Resistance: ≥100 MΩ
Compatible Cable Diameter: 4–8 mm
Conductor Cross-Section: 0.14–0.75 mm² without ferrule; 0.14–0.5 mm² with ferrule
Wire Size: AWG 26–18 without ferrule; AWG 26–20 with ferrule
Wire Stripping Length: 7 mm
Contact Material: CuSn
Contact Surface: Ni/Au
Knurl Material: Zinc die-cast, nickel-plated
Grip Body Material: PA 6.6
Seal Material: NBR
Pressure Nut Material: PBT
Flammability Rating: UL 94 V-0
Housing Diameter: 19 mm
Connector Length: 60 mm
Protection Rating: IP65 / IP67
Operating Temperature: -40°C to +85°C
Insertion/Withdrawal Cycles: ≥100
Standards: IEC 61076-2-101
Railway Standard: EN 50155
RoHS Compliance: Yes
REACH: Compliant; no SVHC above 0.1 wt%
Applications: Industrial sensors, automation systems, PLCs, control equipment, CANopen/DeviceNet applications, instrumentation, and industrial networking
Features: Tool-free Push-Lock connection, secure spring-cage contacting, A-coded M12 interface, compact straight design, IP67 protection, and excellent resistance to shock and vibration.
Additional Information
| Device |
Connector |
| Type |
M12 | Circular | Connector |
Upgrade your connectivity with the SACC-M12MS-5PL M12 Circular Connector. This 5-position, unshielded male plug features a push-lock spring connection for easy installation and a robust design that withstands harsh environments. With IP67 protection and compatibility with a range of applications, it ensures reliable performance for your industrial sensors and automation systems.
