SACC-MSX-8QO SH ETH

Name: SACC-MSX-8QO SH ETH - Communica [Part No: SACC-MSX-8QO SH ETH]
Brand: Phoenix Contact
SKU: SACC-MSX-8QO SH ETH
Price: 766.73 ZAR
Availability: OutOfStock

SKU: SACC-MSX-8QO SH ETH

BRAND: Phoenix Contact

Sold Out
R 881.74_{(inc VAT)}
R 766.73_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

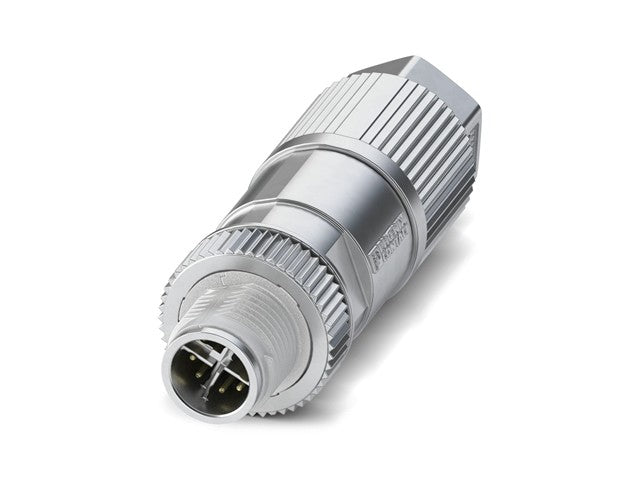

Circular Connector M12 X Cod Cable Male Cat6A 10GB P/S 8 Pole IDT Connection 9,7MM Cable Entry Shieldable (Phoenix 1411043)

Circular Connector M12 X Cod Cable

Specifications

Product Type: Industrial Ethernet Data Connector
Connector Type: M12 Male Plug
Coding: X-Coded
Number of Contacts: 8-Pin
Connection Method: Insulation Displacement Connection (IDC)
Cable Outlet: Straight
Signal Type: Industrial Ethernet CAT6A
Maximum Data Rate: Up to 10 Gbps
Shielding: Yes (360° Shielded)
Halogen-Free: Yes
Rated Voltage: 48 V AC / 60 V DC
Rated Current: 0.5 A
Rated Surge Voltage: 0.8 kV
Insulation Resistance: ≥100 MΩ
Cable Diameter: 5.0 mm to 9.7 mm
Conductor Size: 0.14–0.34 mm² (26–22 AWG)
Housing Material: Zinc die-cast, nickel-plated
Contact Material: Copper alloy
Contact Plating: Gold-plated
Mechanical Durability: ≥100 mating cycles
Protection Rating: IP65 / IP67 (when mated)
Operating Temperature: -40°C to +85°C
Standards: CAT6A, IEC 11801, 10 Gigabit Ethernet
Applications:
- Industrial Ethernet networks
- Factory automation
- Machine building
- Industrial control systems
- High-speed data communication
- Robotics and process automation

Downloads

Datasheet

Additional Information

Device	Connector
Type	Circular \| Connector \| M12 \| X Cod \| Cable

Upgrade your industrial Ethernet connections with the SACC-MSX-8QO SH ETH connector. This M12 X-coded male plug supports data rates up to 10 Gbps, ensuring reliable performance in demanding environments. With 360° shielding and a robust design, it’s perfect for factory automation and robotics. Experience superior durability and high-speed data communication, even in extreme temperatures.
