SCK08053MSY

Name: SCK08053MSY - Communica [Part No: SCK08053MSY]
Brand: Communica
SKU: SCK08053MSY
Price: 3.15 ZAR
Availability: InStock

SKU: SCK08053MSY

BRAND: Communica

R 3.62_{(inc VAT)}
R 3.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

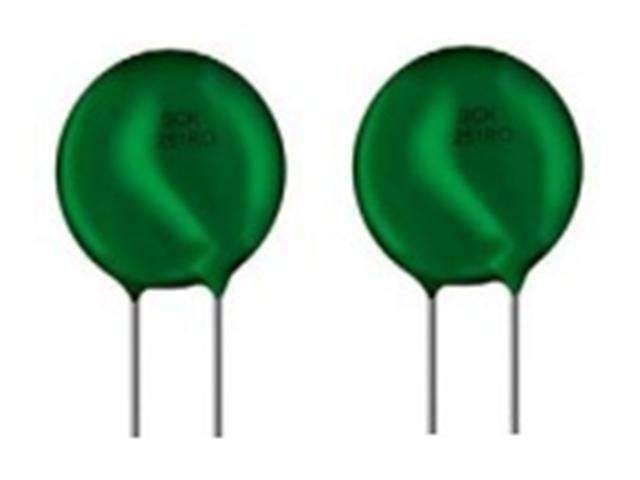

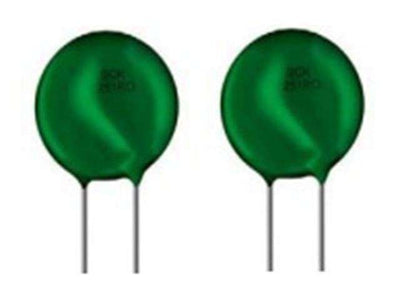

ø8mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 5Ω, I25°C= 3A, ±20% Tolerance

Overview

Features

RoHS & Halogen Free (HF) compliant
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range :

ø5mm: -40~+150°C
ø8~10mm: -40~+170°C
ø13~30mm: -40~+200°C

Agency recognition: UL / cUL / TUV / CSA / CQC

Specification

Size	ø8mm
Termination	Radial
Tolerance	±20%
Tolerance Code	M
Max Steady State Current @25 degC	3A
Zero Power Resistance @ 25 degC	5Ω

Downloads

Datasheet Download

Enhance your electronic projects with the SCK08053MSY Radial Power NTC Thermistor, designed to limit inrush current effectively. With a robust 5Ω resistance and a high power rating of 3A, it ensures optimal performance across a wide temperature range. Plus, it's RoHS and Halogen Free compliant, making it a safe and eco-friendly choice for your applications.
