SCK08201MSY

Name: SCK08201MSY - Communica [Part No: SCK08201MSY]
Brand: Communica
SKU: SCK08201MSY
Price: 3.15 ZAR
Availability: InStock

SKU: SCK08201MSY

BRAND: Communica

R 3.62_{(inc VAT)}
R 3.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

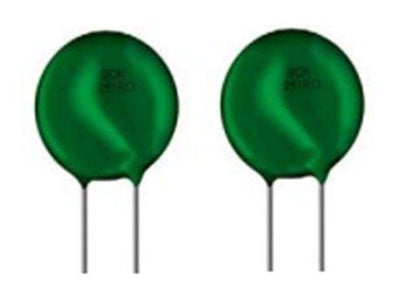

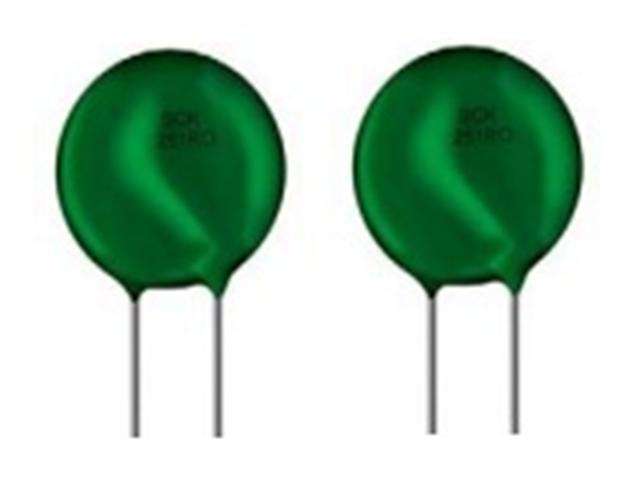

ø8mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 20Ω, I25°C= 1A, ±20% Tolerance

Overview

Features

RoHS & Halogen Free (HF) compliant
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range :
Agency recognition: UL / cUL / TUV / CSA / CQC

Specification

Size	ø8mm
Termination	Radial
Tolerance	±20%
Tolerance Code	M
Max Steady State Current @25 degC	1A
Zero Power Resistance @ 25 degC	20Ω

Downloads

Datasheet Download

Enhance your electronic projects with the SCK08201MSY Radial Power NTC Thermistor. Designed for efficient inrush current limiting, it features a robust 20Ω resistance at 25°C and a high power rating. With a wide operating temperature range and compliance with RoHS standards, this thermistor ensures reliability and performance, making it a cost-effective choice for your needs.
