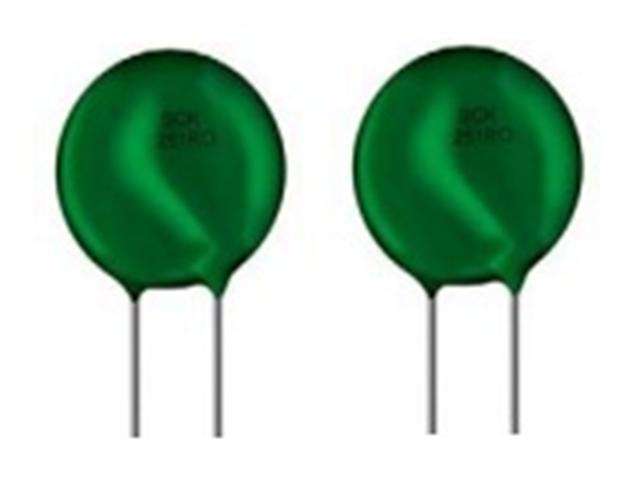

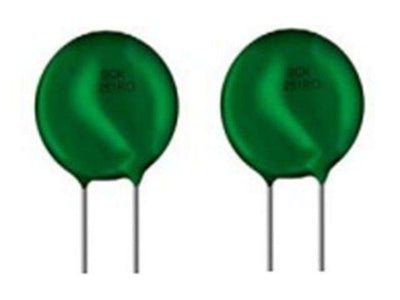

ø13mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 10Ω, I25°C= 4A, ±20% Tolerance
Overview
Features
- RoHS & Halogen Free (HF) compliant
- Radial lead resin coated
- High power rating
- Wide resistance range
- Cost effective
- Operating temperature range :
- Agency recognition: UL / cUL / TUV / CSA / CQC
Specification
Size |
ø13mm |
Termination |
Radial |
Tolerance |
±20% |
Tolerance Code |
M |
Max Steady State Current @25 degC |
4A |
Zero Power Resistance @ 25 degC |
10Ω |
