SCK15224MSY

Name: SCK15224MSY - Communica [Part No: SCK15224MSY]
Brand: Communica
SKU: SCK15224MSY
Price: 5.80 ZAR
Availability: InStock

SKU: SCK15224MSY

BRAND: Communica

R 6.67_{(inc VAT)}
R 5.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

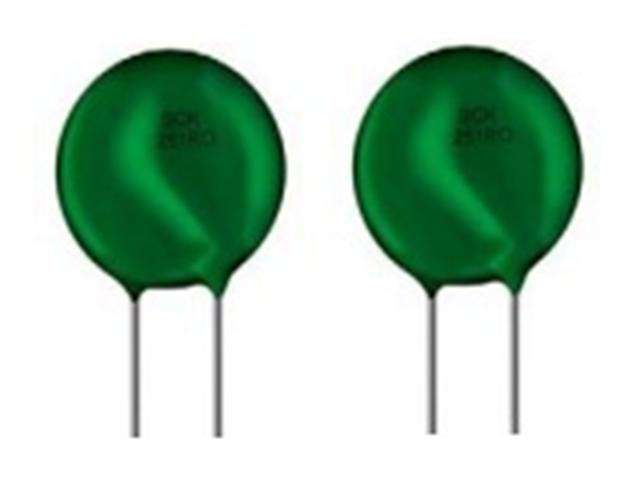

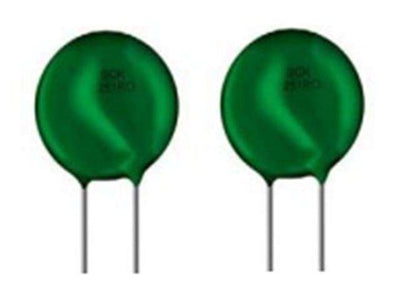

ø15mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 22Ω, I25°C= 4A, ±20% Tolerance

Overview

Features

RoHS & Halogen Free (HF) compliant
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range :
Agency recognition: UL / cUL / TUV / CSA / CQC

Specification

Size	ø15mm
Termination	Radial
Tolerance	±20%
Tolerance Code	M
Max Steady State Current @25 degC	4A
Zero Power Resistance @ 25 degC	22Ω

Downloads

Datasheet Download

Enhance your electrical projects with the SCK15224MSY Radial Power NTC Thermistor. Designed for inrush current limitation, this durable component offers a high power rating and a wide resistance range, ensuring reliable performance. With its RoHS compliance and excellent temperature stability, it's the cost-effective solution for your circuit protection needs.
