SCK201R0MSBY

Name: SCK201R0MSBY - Communica [Part No: SCK201R0MSBY]
Brand: Communica
SKU: SCK201R0MSBY
Price: 10.15 ZAR
Availability: InStock

SKU: SCK201R0MSBY

BRAND: Communica

R 11.67_{(inc VAT)}
R 10.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

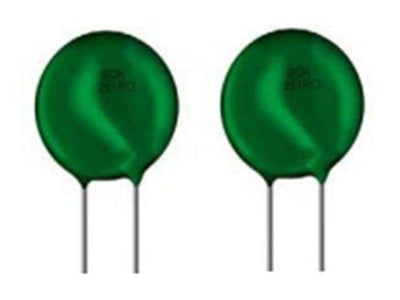

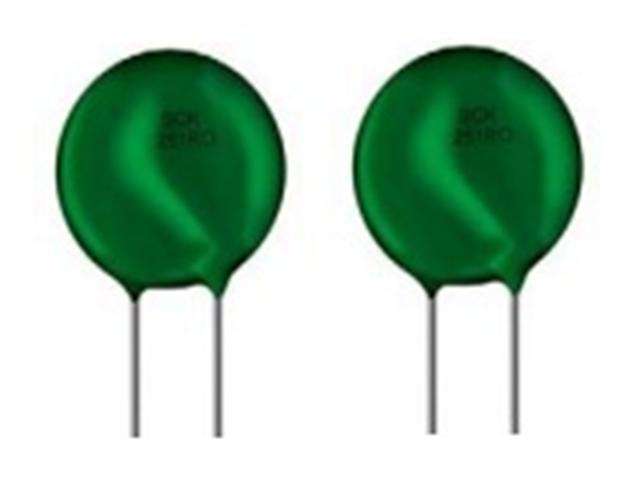

ø20mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 1Ω, I25°C= 13A, ±20% Tolerance

Overview

Features

RoHS & Halogen Free (HF) compliant
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range :
Agency recognition: UL / cUL / TUV / CSA / CQC

Specification

Size	ø20mm
Termination	Radial
Tolerance	±20%
Tolerance Code	M
Max Steady State Current @25 degC	13A
Zero Power Resistance @ 25 degC	1Ω

Downloads

Datasheet Download

Optimize your circuit with the SCK201R0MSBY Radial Power NTC Thermistor, designed to limit inrush current effectively. With a robust 1Ω resistance and a high power rating of 13A, this cost-effective solution ensures reliable performance in various applications. Plus, it’s RoHS and Halogen Free compliant, making it an environmentally friendly choice for your projects.
