SCK205R0MSBY

Name: SCK205R0MSBY - Communica [Part No: SCK205R0MSBY]
Brand: Communica
SKU: SCK205R0MSBY
Price: 10.15 ZAR
Availability: InStock

SKU: SCK205R0MSBY

BRAND: Communica

R 11.67_{(inc VAT)}
R 10.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Surge Protection Components

Category: Thermistors

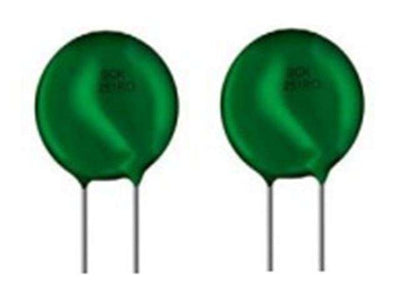

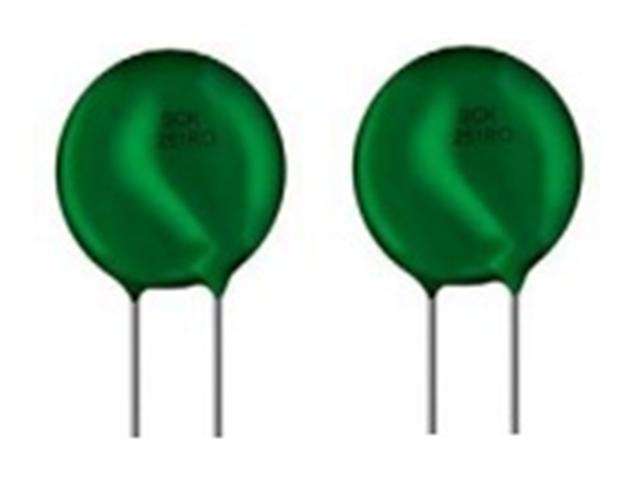

ø20mm Radial Power NTC Thermistor for Limiting Inrush Current with R25°C= 5Ω, I25°C= 7.5A, ±20% Tolerance

Overview

Features

RoHS & Halogen Free (HF) compliant
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range :
Agency recognition: UL / cUL / TUV / CSA / CQC

Specification

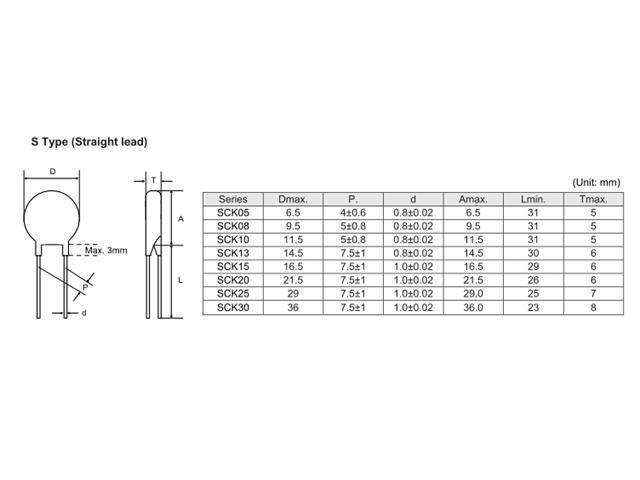

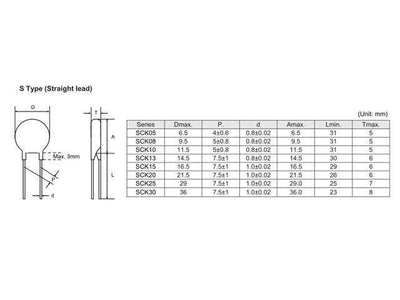

Size	ø20mm
Termination	Radial
Tolerance	±20%
Tolerance Code	M
Max Steady State Current @25 degC	7.5A
Zero Power Resistance @ 25 degC	5Ω

Downloads

Datasheet Download

Upgrade your electronics with the SCK205R0MSBY Radial Power NTC Thermistor, designed to effectively limit inrush current. With a robust 5Ω resistance and a high power rating of 7.5A, this thermistor ensures reliable performance and enhances system longevity. RoHS and Halogen-free compliant, it's the cost-effective solution for your thermal management needs.
