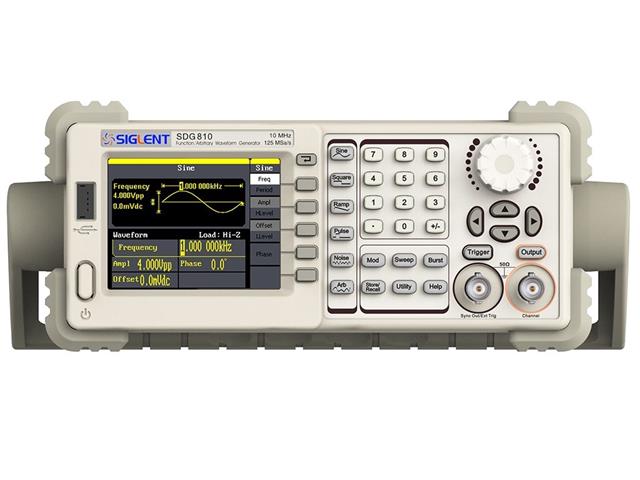

SIGLENT Function / Arbitrary Waveform Generator 10MHz 125MSa/s 16kpts 14bits 3.5inch TFT-LCD (229x105x281mm)

Function / Arbitrary Waveform Generator


SDG800 series Function/Arbitrary Waveform Generator is a new family member of SIGLENT with friendly design: 3.5 inch TFT-LCD display; Built-in Chinese/English language; Online help function; Support U dick and internal storage, facilitative files management.


  • DDS technology, Single-channel output
  • 125MSa/s sample rate, 14bit vertical resolution.
  • 5 types of standard output waveform, built-in 46 arbitrary waveforms(include DC)
  • Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
  • Abundant input/output: waveform output, Synchronous signal output, , external trigger input.
  • Standard interfaces: USB Device, USB Host.
  • Supplied with powerful arbitrary editing software
  • Support remote control


  • Max. output frequency : 5 MHz
  • Output channels : 1
  • Sample rate : 125MSa/s
  • Arbitrary waveform length : 16kpts
  • Frequency resolution : 1μHz
  • Vertical resolution : 14bits
  • Waveform : Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary waveforms(include DC)
  • Modulation : AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
  • Standard interface : USB Host & USB Device
  • Dimension : W x H x D=229mm x 105mm x 281mm

Additional Information

Device Generator
Type Function / Arbitrary | Waveform
