SDL1020X-E

Name: SDL1020X-E - Communica [Part No: SDL1020X-E]
Brand: Siglent
SKU: SDL1020X-E
Price: 9042.61 ZAR
Availability: InStock

SKU: SDL1020X-E

BRAND: Siglent

R 10,399.00_{(inc VAT)}
R 9,042.61_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: New Arrivals, Test & Measurement

Type: Environmental Test Equipment

Category: New, Programmable DC Electronic Load

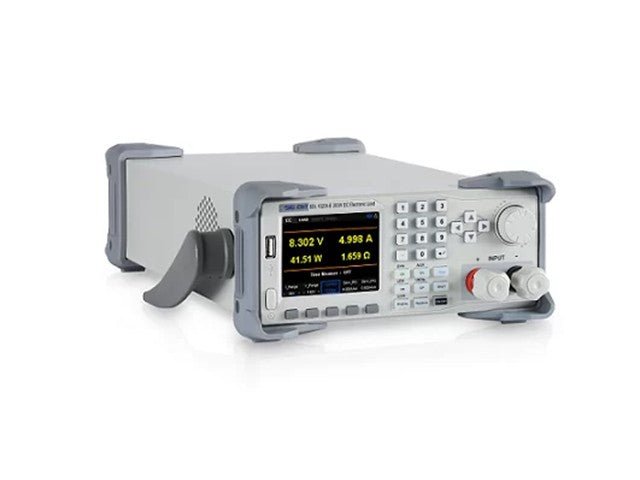

SIGLENT 1CH Programmable DC Electronic Load 150V 30A, 3.5Inch TFT-LCD Display, Input Power 200W, RS232/USB/LAN, Mode:CC/CV/CR/CP, CC Dynamic Mode Freq:25KHz, Measuring Speed: Up To 500KHz, 0.001 A/us~2.5 A/us, 256x115x410mm

1CH Programmable DC Electronic Load

Overview

The Siglent SDL1000X family of active DC loads have been designed for both benchtop and automatic/remote operation, The SDS1020X series provides for total power up to 200 Watts while the SDS1030X is rated for 300 Watts. While “X” suffix versions have a resolutions of 0.1 mV / 0.1 mA, the “X-E” versions are designed with a 1 mV / 1 mA resolution.

All models come with 4 static modes (CC/CV/CR/CP) as well as CC, CP, and CV Dynamic modes that can toggle the load at a rate up to 25 kHz (CC).

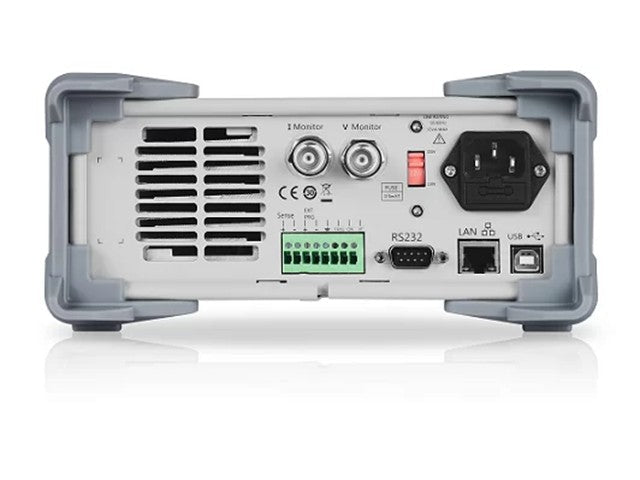

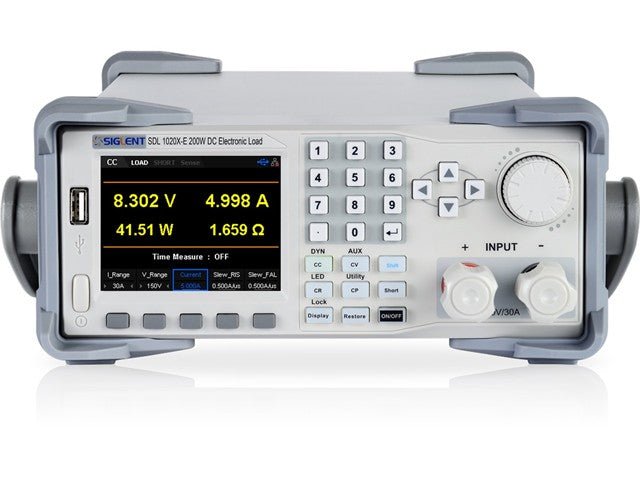

Other features include 4-wire SENSE compensation mode, external analog control, List and Program functions, and RS-232 / USB / LAN computer interfaces (GPIB module is available as an option). The 3.5″ TFT-LCD display also supports a “analog” waveform trend chart function.

Features

DC 150 V/30 A, total power up to 200 Watts
Resolution: 1 mV / 1 mA
CC / CV / CR / CR
CC Dynamic Mode: to 25 kHz, CP Dynamic Mode: to 12.5 kHz, CV Dynamic Mode: to 0.5 Hz.
Short-circuit, Battery test, CR-LED mode, and factory-test functions
4-wire SENSE compensation mode function
Adjustable current rise time range 0.001 A/us – 2.5 A/us.
Over-current, Over-power, Over-voltage, Over-temperature protection modes
CR-LED Mode

Downloads

Datasheet - SDL1020X-E

Additional Information

Device

DC Electronic Load

The SIGLENT SDL1020X-E Programmable DC Electronic Load delivers precision with a 150V/30A capacity and 200W power. Featuring a vibrant 3.5-inch TFT-LCD display, it offers versatile modes (CC/CV/CR/CP) and dynamic control up to 25 kHz, making it ideal for benchtop or remote applications. Enjoy enhanced measurement accuracy and robust protection features for reliable performance in your electronic testing needs.
