SKU: SDS2104X PLUS
BRAND: Siglent
R 26,595.00 (inc VAT)
R 23,126.09 (ex VAT)
Collections: New Arrivals, Test & Measurement
Type: Oscilloscopes
Category: Digital Storage Oscilloscope, New

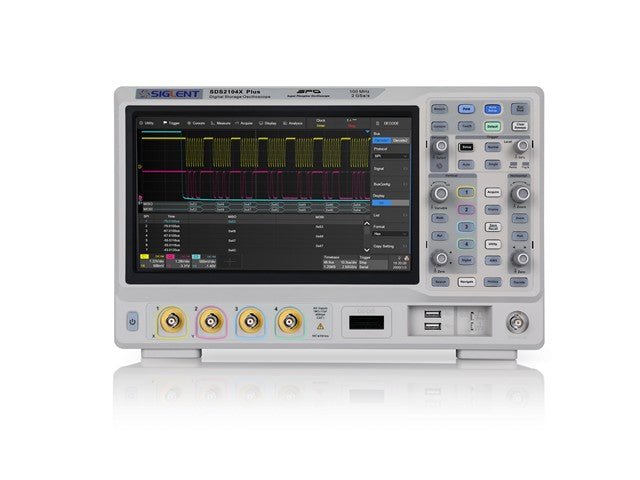

The Siglent SDS2104X Plus oscilloscope is the 4-channel 100 MHz version in the Siglent SDS2000X Plus series oscilloscopes.
The Siglent SDS2104X Plus oscilloscope offers a large and bright 10.1" screen. Because of the large screen, there is less space for knobs and buttons on the oscilloscope, but this is fully compensated by the modern multi-touch interface on the screen.
The series also features a 10 bit ADC @100MHz (Analog to Digital Converter), which is a nice feature compared to the majority of oscilloscopes that have only 8 bits as standard. The SDS2104X Plus now also comes with a trigger zone function, which makes advanced triggering easier.
By default the scope comes with a number of serial triggering and decoding options such as I2, SPI, UART, CAN and LIN. This makes the scope a very comprehensive model, which is now even more attractive because it is equipped with a very low noise floor (80 µV).
| Bandwidth | 100 MHz |
| Rise time | 3.5 ns |
| Total memory | 400 Mpts |
| Number of channels | 4 |
| Price |
| Memory | Up to 200 Mpts per channel |
| Waveform capture rate (max) | 120,000 wfms/s (normal) 500,000 wfms/s (sequence mode) |
| Sample rate (half of all channels in use) | 2 GSa/s |
| Sample rate (all channels in use) | 1 GSa/s |
| Display | 10.1" multi-touch screen (1024 x 600) |
| Ingress impedance | 1 MΩ |
| Horizontal scale | 1 ns/div - 1000 s/div |
| Vertical sensitivity | 500 µV/div - 10V/div |
| Vertical resolution | 8 bits, 10 bits up to 100Mhz |
| Maximum voltage | 400 V (peak - peak) |
| Connectors | 2x USB 2.0 Host, USB 2.0 Device, LAN, EXT (TRIG OUT, PASS/FAIL) |
| Dimensions | 352 x 224 x 111 mm |
| Weight | 2 channels: 3.3 kg 4 channels: 3.9 kg |
| Device | Oscilloscope |
| Type | Digital Storage |
