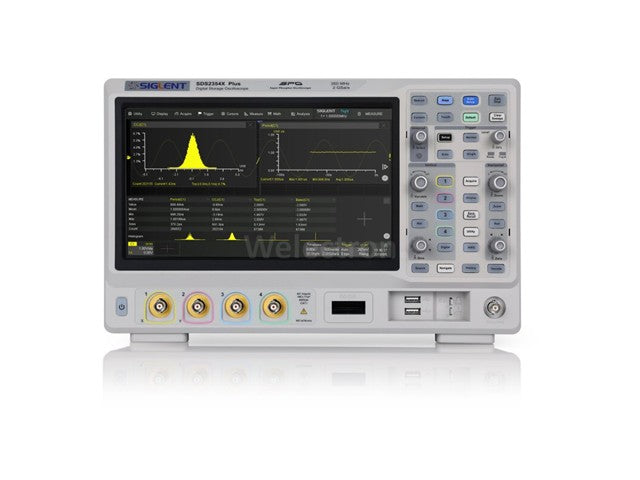

SDS2354X PLUS

Name: SDS2354X PLUS - Communica [Part No: SDS2354X PLUS]
Brand: Siglent
SKU: SDS2354X PLUS
Price: 49530.44 ZAR
Availability: OutOfStock

SKU: SDS2354X PLUS

BRAND: Siglent

Sold Out
R 56,960.01_{(inc VAT)}
R 49,530.44_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: Oscilloscopes

Category: Benchtop Oscilloscopes, Digital Storage Oscilloscope, New

SIGLENT Digital Storage Oscilloscope 350MHz 4CH, 10.1” TFT LCD TOUCH SCREEN , RES:1024X600 , 2 GSa/s (INTERLEAVING MODE) , 1 GSa/s (Non-Interleaving Mode), External Trigger, USB2.0 HOSTx2, USB2.0 Device, LAN, AUX O/P (TRIG OUT,PASS/FAIL)

Digital Storage Oscilloscope

Overview

Siglent SDS2354X Plus 4 Channel 350MHz 2 GSa/s osciloscope is the 3rd Generation of their 2000 series of oscilloscopes. Five years after Siglent introducuced the very successful SDS2000X. Siglent has continued to implement customer feedback and now presents SDS2000X Plus series. Designed to impress, the X Plus has a feature-rich standard configuration and options that make it a powerful and flexible tool for all general purpose tasks in the lab.

Specifications

Model:	SDS2354X Plus
Analog channels	4 + EXT
Bandwidth	350 MHz, (upgradable to 500 MHz)
Sample rate (Max.)	2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode)
Memory depth mode (Max.)	2 GSa/s (interleaving mode ) 1 GSa/s (non-interleaving)
Waveform capture rate Mode (Max.)	Normal : 120,000 wfm/s; Sequence: 500,000 wfm/s
Vertical resolution	8-bit. 10-bit mode (with typical 100 MHz bandwidth)
Trigger type	Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
Measurement	More than 50 parameters, supports statistics with histogram and trend
Math	2 traces, 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
Data processing and analysis tools	Search, Navigate, History, Mask test, Bode plot, Power Analysis (optional) and Counter

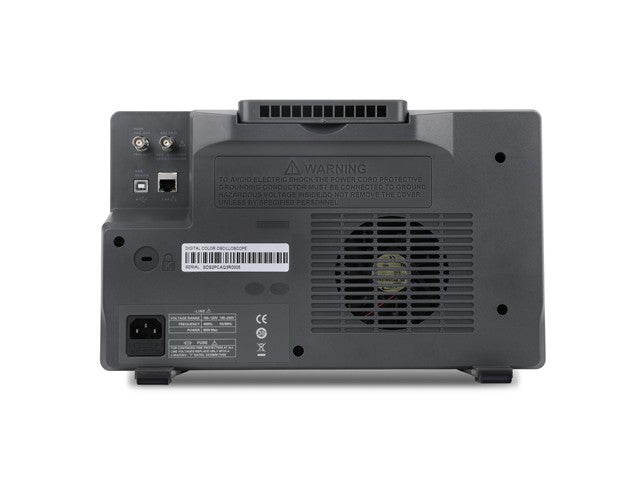

Interface	USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe (standard)	SP2035A, 350 MHz, 1 probe supplied for each channel
Display	10.1” TFT-LCD with capacitive touch screen (1024x600)

Downloads

Datasheet - SDS2354X PLUS

Additional Information

Device	Oscilloscope
Type	Digital Storage
