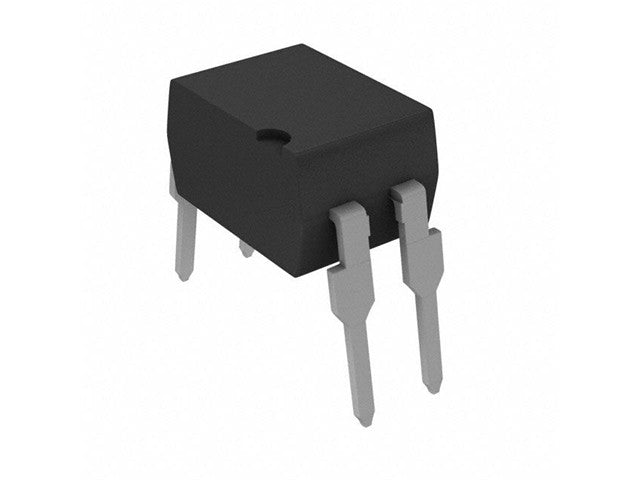

SFH628A-4

SFH628A-4

SKU: SFH628A-4

BRAND: Communica



R 20.47 (inc VAT)
R 17.80 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

Collections:

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

Single Channel Optocoupler AC Input Phototransistor Output 4P DIP CTR=80-250%

Single Channel Optocoupler AC Input Phototransistor

Specifications


Number of Channels 1
Voltage - Isolation 5300 Vrms
Current Transfer Ratio (Min) 160% @ 1 mA
Current Transfer Ratio (Max) 500% @ 1 mA
Turn On / Turn Off Time (Typ) 6 µs, 5.5 µs
Rise / Fall Time (Typ) 3.5 µs, 5 µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 55 V
Current - Output / Channel 50 mA
Voltage - Forward (Vf) (Typ) 1.1 V
Current - DC Forward (If) (Max) 50 mA
VCE Saturation (Max) 400 mV
Operating Temperature -55°C to +100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62 mm)
Supplier Device Package 4-DIP

Additional Information

Device Transistor
