25.4-12.7mm Heat Shrink Sleeving with Excellent Flame Retardance suitable for 120-185mm2 Wire Size in Yellow & Green Colour

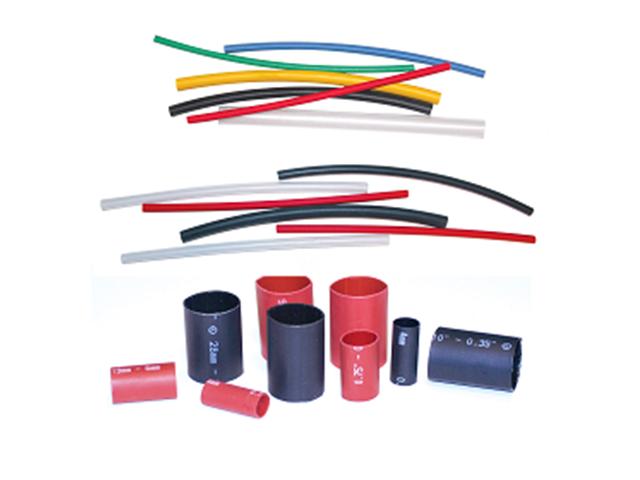

25.4mm Yellow & Green Heat Shrink Sleeve
Overview
ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.
Feature(s)
- Cross-linked polyolefin
- Shrink Ratio 2 : 1
- Operating temperature : -55 to 125°C
- Excellent flame retardance VW-1
- Minimum shrink temperature : 70°C 600V
- UV Stable
Specifications
- Tensile (MPa) : > 10.4
- Elongation (%) : > 200
- Heat Ageing
- Tensile (MPa) (158°C x 168 hrs) : > 7.3
- Elongation (%) : > 100
- Heat Shock (250°C x 4hrs) : No Cracks/Dripping
- Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
- Copper Stability (158°C x 168 hrs) : Pass
- RoHS (ppm) : <200
- Flammability VW-1 : Pass
- Dielectric Strength (kV/mm) : > 15
- Volume Resistivity ASTM D 257
- Halogen Test (ppm) : <800
Downloads
Additional Information
| Device |
Heat Shrink Sleeve |
| Type |
Thin Wall |
| Roll Size |
50m |
| Colour |
Yellow & Green |
| Dielectric |
>15KV/mm |
| Shrink Ratio |
2 : 1 |
| Sleeve Diameter |
25.4mm |
| Shrunk Diameter |
12.7mm |
| Flame Retardant |
Yes |
| Min Shrink Temp |
70°C |
Discover the SHR 25.4 YL/GR heat shrink sleeve, designed for 120-185mm² wire sizes. This flame-retardant, RoHS-compliant tubing ensures safety in sensitive environments, offering excellent durability and UV stability. Protect your electronics with confidence, knowing this high-quality sleeve provides a reliable, long-lasting solution for your wiring needs.
