SHR 6,4 RED

Name: SHR 6,4 RED - Communica [Part No: SHR 6,4 RED]
Brand: AirShrink
SKU: SHR 6,4 RED
Price: 12.65 ZAR
Availability: InStock

SKU: SHR 6,4 RED

BRAND: AirShrink

R 14.55_{(inc VAT)}
R 12.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Wire & Cable

Type: Cable Accessories

Category: Heat Shrink Sleeves

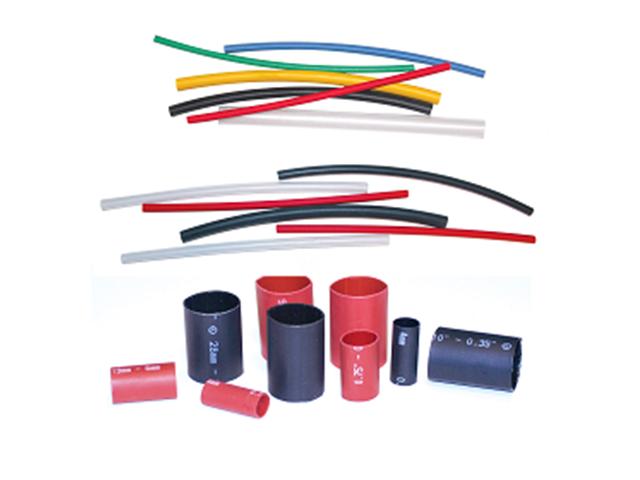

6.4-3.2mm Heat Shrink Sleeving with Excellent Flame Retardance suitable for 4-6mm² Wire Size in Red Colour

6.4mm Red Heat Shrink Sleeve

Overview

ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.

Feature(s)

Cross-linked polyolefin
Shrink Ratio 2 : 1
Operating temperature : -55 to 125°C
Excellent flame retardance VW-1
Minimum shrink temperature : 70°C 600V
UV Stable

Specifications

Suitable Wire Size : 4-6mm²
Tensile (MPa) : > 10.4
Elongation (%) : > 200
Heat Ageing

Tensile (MPa) (158°C x 168 hrs) : > 7.3
Elongation (%) : > 100

Heat Shock (250°C x 4hrs) : No Cracks/Dripping
Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
Copper Stability (158°C x 168 hrs) : Pass
RoHS (ppm) : <200
Flammability VW-1 : Pass
Dielectric Strength (kV/mm) : > 15
Volume Resistivity ASTM D 257
Halogen Test (ppm) : <800

Downloads

Datasheet - Thin Wall Heatshrink

Additional Information

Device	Heat Shrink Sleeve
Color	Red
Dielectric	>15KV/mm
Shrink Ratio	2 : 1
Sleeve Diameter	6.4mm
Shrunk Diameter	3.2mm
Flame Retardant	Yes
Min Shrink Temp	70°C

Ensure the safety and durability of your wiring with the SHR 6.4 Red Heat Shrink Sleeve. Designed for 4-6mm² wires, this flame-retardant sleeve offers excellent protection in sensitive environments like trains and ships. Its robust, UV-stable construction and superior shrink ratio ensure reliable performance even under extreme temperatures. Upgrade your electrical projects with this essential, RoHS-compliant solution today!
