9.5-4.8mm Heat Shrink Sleeving with Excellent Flame Retardance suitable for 10-15mm2 Wire Size in Red Colour

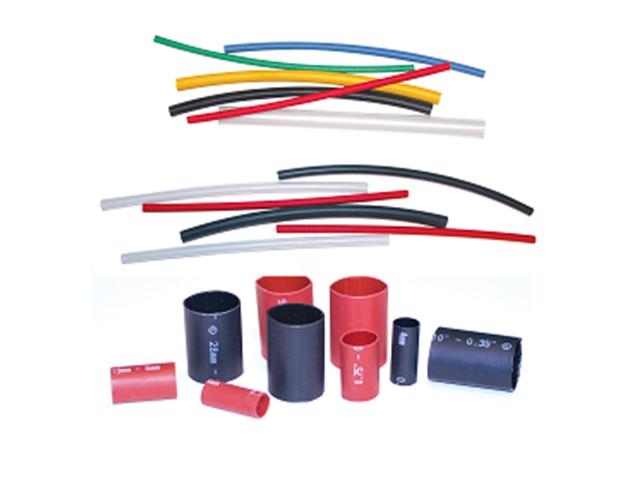

9.5mm Red Heat Shrink Sleeve
Overview
ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.
Feature(s)
- Cross-linked polyolefin
- Shrink Ratio 2 : 1
- Operating temperature : -55 to 125°C
- Excellent flame retardance VW-1
- Minimum shrink temperature : 70°C 600V
- UV Stable
Specifications
- Suitable Wire Size : 10-15mm2
- Tensile (MPa) : > 10.4
- Elongation (%) : > 200
- Heat Ageing
- Tensile (MPa) (158°C x 168 hrs) : > 7.3
- Elongation (%) : > 100
- Heat Shock (250°C x 4hrs) : No Cracks/Dripping
- Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
- Copper Stability (158°C x 168 hrs) : Pass
- RoHS (ppm) : <200
- Flammability VW-1 : Pass
- Dielectric Strength (kV/mm) : > 15
- Volume Resistivity ASTM D 257
- Halogen Test (ppm) : <800
Downloads
Additional Information
| Device |
Heat Shrink Sleeve |
| Color |
Red |
| Dielectric |
>15KV/mm |
| Shrink Ratio |
2 : 1 |
| Sleeve Diameter |
9.5mm |
| Shrunk Diameter |
4.8mm |
| Flame Retardant |
Yes |
| Min Shrink Temp |
70°C |
Introducing the SHR 9.5 RED heat shrink sleeve, designed for superior protection of 10-15mm² wires in challenging environments. With a 2:1 shrink ratio, excellent flame retardance, and RoHS compliance, it ensures safety and reliability for your electronic devices. Perfect for automotive, marine, and industrial applications, this durable tubing withstands extreme temperatures and harsh conditions, giving you peace of mind.
