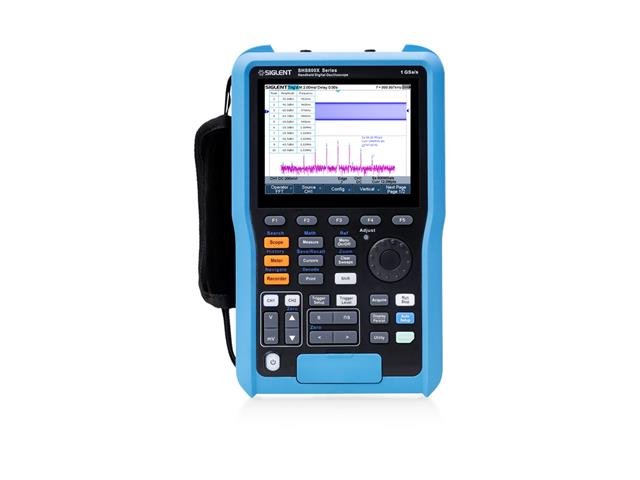

SHS810X - -

SHS810X

SKU: SHS810X

BRAND: Siglent


In Stock
R 24,500.09 (inc VAT)
R 21,304.43 (ex VAT)

Collections:

Type: Oscilloscopes

Category: Hand-held Oscilloscopes

Siglent Handheld Oscilloscope 2Ch 100Mhz 1Gsa/s , Display:5.6" Tft-lcd (640X480) , Memory Depth:12mpts , Serial Trigger & Decoder:iic, Spi, Uart, Can, Lin , I/o:usb Host/device , Max I/p Voltage Meter:cat Iii 300 Vrms, Cat Ii 600 Vrms , True Rms Dmm

HANDHELD OSCILLOSCOPE

Overview

Key Features Intelligent triggers: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test. 1 Mpts FFT: Support Peaks and Markers 5.6-inch TFT-LCD display with 640 * 480 resolution

Specifications

  • Oscilloscope

Channels 2
Sample rate 1 GSa/s (single channel)
500 MSa/s (dual channel)
Memory depth 12 Mpts (single channel)
6 Mpts (dual channel)
Waveform capture rate 100000 wfm/s, normal mode (400000 wfm/s, sequence mode)
Vertical resolution 8 bits
Serial trigger/decode IIC, SPI, UART, CAN, LIN
Interfaces USB Host/Device
Sample logger
 Yes



  • Multimeter

Voltage DC: 0.01 mV - 1000 V
AC: 0.01 mV - 750 V
Current DC: 0.01 mA - 10 A
AC: 0.01 mA - 10 A
Resistance 0.1 Ω - 60 MΩ
Capacitance 0.01 nF - 400 uF
Additional functions Diode, Continuity

Display 5.6" TFT LCD (640x480)
Battery (working time) 6900 mA (5.5 Hours)
IP-rating IP51
Dimensions 276x168x68 mm LxWxH



Downloads

Additional Information

Device Oscilloscope
Type SIGLENT | HANDHELD | OSCILLOSCOPE
