SK129STS-38,1

SKU: SK129STS-38,1

BRAND: Fischer Elektronik


Heatsink 38,1mm PCB 6,5K/W

Heatsink 38,1mm PCB 6,5K/W

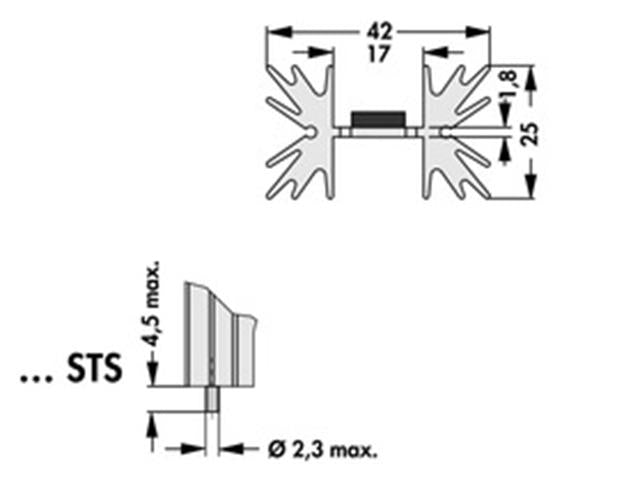

Specifications

  • Way of Fixation : Transistor screw mounting
  • Width : 42 mm
  • Height : 25 mm
  • Plate Thickness : 1.8 mm
  • Length : 38.1 mm
  • Thermal Resistance : 6.5 K/W
  • Mounting Method : With solder pins and insulating washer
  • Drilling Pattern:
    • SOT 32
    • TO 220
    • TO 3 P
  • surface : Black Anodised

Additional Information

Device Heatsink
Type for 38,1mm | for PCB | for 6,5K/W
