Heatsink Extruded PCB TO220 7K/W No Pins
Heatsink Extruded PCB

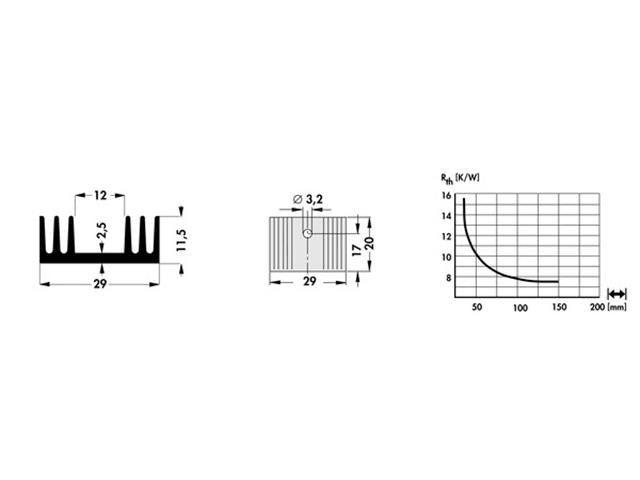

Specifications
- Thermal Resistance : 15.7 - 6.8 K/W
- Length : 37.5 mm
- Surface : Black Anodised
- Drilling Pattern : TO 220
- Height : 11.5 mm
- Width : 29 mm
- Plate Thickness : 2.5 mm
Additional Information
| Device |
Heatsink |
| Type |
for Extruded |
Enhance your device's performance with the SK76-50SA220 heatsink, designed for TO220 applications. With a thermal resistance of 6.8 K/W, this black anodized extruded heatsink ensures optimal heat dissipation, prolonging component life and boosting efficiency. Elevate your projects with reliable thermal management today!
