SK95-25SA220

SKU: SK95-25SA220

BRAND: Fischer Elektronik


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Extruded heatsinks for PCB mounting H = 25MM W = 12,6MM 36K/W

Extruded Heatsinks for PCB Mounting

Specifications

  • Way of Fixation : Transistor Screw Mounting
  • Width : 12.6 mm
  • Height : 6.5 mm
  • Plate Thickness : 1.1 mm
  • Length : 25 mm
  • Thermal Resistance : 36 K/W
  • Mounting Method : with solder pin
  • Drilling Pattern : TO 220
  • Surface : Black Anodized
  • Type of Thread : not anodized

Additional Information

Device Heatsinks
Type for PCB Mounting

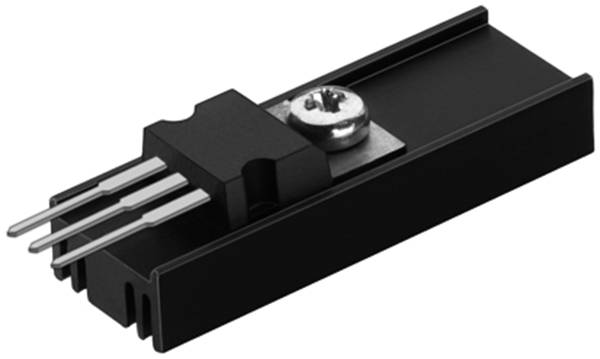

Upgrade your cooling with the SK95-25SA220 extruded heatsink, designed for efficient PCB mounting. With a compact size of 25mm x 12.6mm and a thermal resistance of just 36 K/W, it ensures optimal heat dissipation for your electronic devices. The black anodized finish not only enhances durability but also provides a sleek look. Perfect for transistor screw mounting, this heatsink is essential for maintaining peak performance in your applications.
