Thermostat N/O - Celsius - 15A @ 120VAC, 10A @ 240VAC, 30W @ DC (2.8x1.5x1.4mm) IP20 DIN Rail Mounting
Thermostat N/O - Celsius
Overview

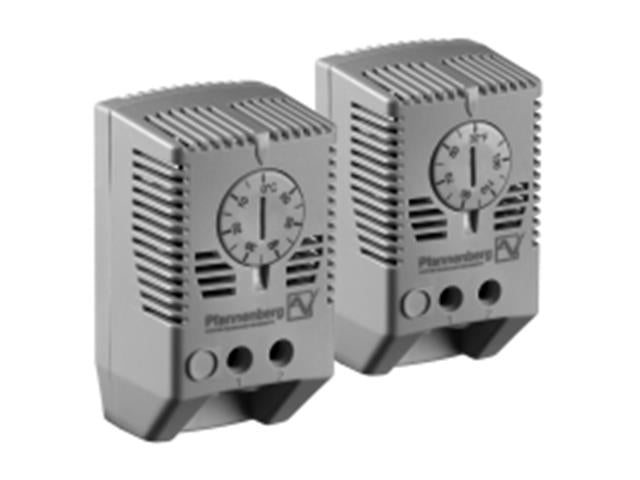

The SKT011419NO-C is a Climate Control Thermostat made of flame-retardant plastic housing with gray (SB) color and thermostatic bimetal sensor element. It is designed to provide air temperature control and monitoring in cabinets. The thermostat has NO (normally open) for the control of cooling units or for switching signal transmitters in case of overheating. It features 15A (1) AC at 120V and 10A (1) AC at 250V switching capacity.
Specifications
- 2-pole terminal for 14AWG connection
- IP20 Protection rating
- UL94V-0 Flammability rating
- 32 to 140°F Adjustable range
- Thermostat Type: Programmable
- Thermostat Set Point : -1.11°C to +60°C
- Contact Rating : 10A at 250VAC

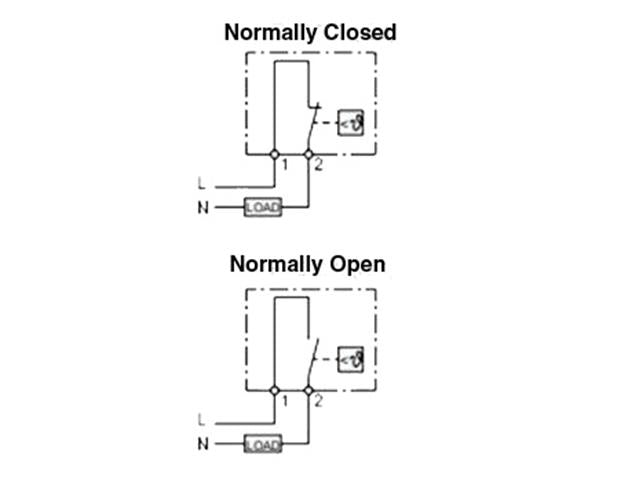

- Contact Operation : Normally Open
- Load Type : Resistive
- Thermostat Mounting : DIN Rail
Downloads
Additional Information
Device |
Thermostat |
Type |
N/O | Celsius |
