SMDA05LC

Name: SMDA05LC - Communica [Part No: SMDA05LC]
Brand: Communica
SKU: SMDA05LC
Price: 58.50 ZAR
Availability: InStock

SKU: SMDA05LC

BRAND: Communica

R 67.28_{(inc VAT)}
R 58.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Diodes & Rectifiers

Category: Diodes - TVS

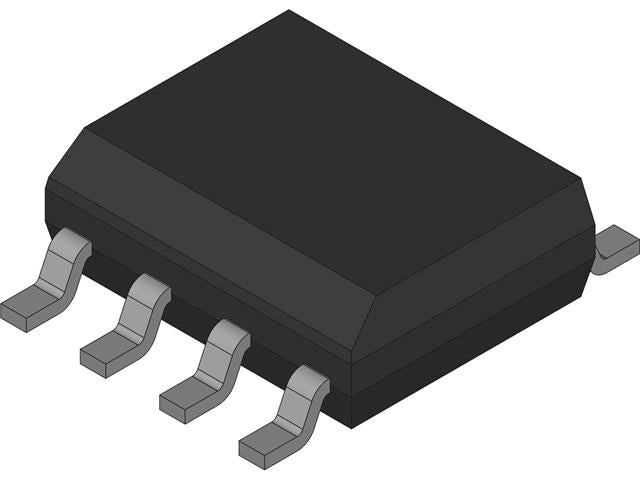

Xorb Array X4 5V 500W @ 8/20µs Unipolar LO CAP SO-8

Specifications

Breakdown Voltage-Min:	6V
Clamping Voltage-Max:	13.5V
Directional:	Uni-Directional
Peak Output Current:	42A
Reverse Leakage Current:	20µA
Peak Power:	500W
Test Current:	1mA
Standoff Voltage:	5V
Forward Voltage:	1.5V
Operating Temp Range:	-55°C to +150°C
Storage Temperature Range:	-55°C to +150°C
Capacitance:	8pF
Package Style:	SOIC-8
Mounting Method:	Surface Mount

Additional Information

Device	Xorb Array
Type	Unipolar

Enhance your electronic projects with the SMDA05LC Xorb Array X4, offering exceptional performance with a 5V standoff voltage and 500W peak power capability. Designed for reliability, this unipolar SO-8 component ensures efficient clamping and minimal leakage, making it ideal for robust applications. With a wide operating temperature range and surface mount convenience, it's the perfect choice for high-performance circuits.
