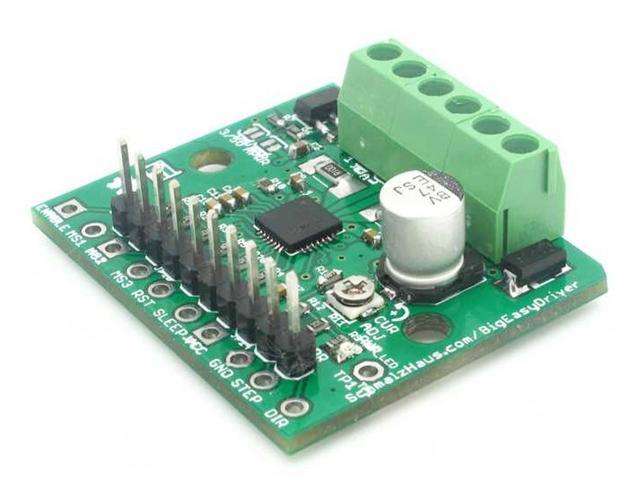

SME BIG EASY STEPPER DRIVER

SKU: SME BIG EASY STEPPER DRIVER

BRAND: Itead Studio


Big Easy Driver is a stepper motor driver board for bi-polar stepper motors up to 2A/phase

Overview

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to 2A/phase. It is based on the Allegro A4983 stepper driver chip. It's the next version of the popular Easy Driver board.

Each BigEasyDriver can drive up to about 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 2A/phase.

Features

  • Bi-polar Microstepping Driver
  • 2A/Phase Max
  • Max Motor Drive Voltage: 35V
  • On-board 5V/3.3V Regulation

Specification

  • Module Type : Driver
  • Weight : 18.00g
  • Version 1.0
  • Operation Level : Digital 3.3V | Digital 5V
  • Power Supply
    • External 12V
    • External 24V
    • External 9V
