SME GBOARD PRO

SKU: SME GBOARD PRO

BRAND: Communica

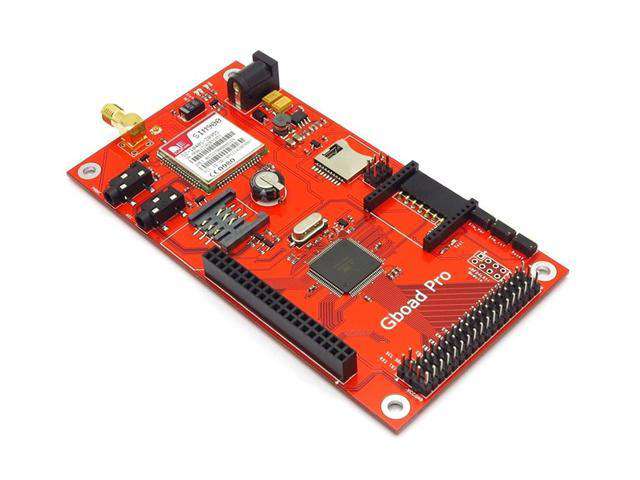

Gboard Pro Arduino Mainboard with SIM900 GPS/GPRS Module & Xbee Socket

Overview

Gboard Pro is a unique Arduino mainboard with SIM900 GSM / GPRS module, XBee socket, nRF24L01 + module interface, micro SD card interface, ITDB02 parallel LCD module interface, electronic brick interface and ATmega2560 chips, which can achieve wireless control via XBee, nRF24L01 + or GSM / GPRS with functions covering from smart home to remote control of robots to meet various needs of different projects.

Features

Specification

  • Microcontroller : ATMega2560
  • Version 1.0
  • Max Frequency : 16MHz
  • RAM Capacity : 512Byte
  • FLASH Capacity : 256K
  • Onboard SD socket
  • Onboard GSM/GPRS
  • Electronic Brick Interface
  • PCB size : 131.0mm X 68.8mm X 1.6mm
  • Supply voltage : 7~23V DC
  • Operating voltage : 3.3V DC
  • Input low voltage : -0.3~0.5V
  • Average Current consumption :100~500mA
  • Peak Current consumption : 2A
  • Indicators : PWR, NET, Status, Test
  • Communication interfaces : XBee, nRF24L01+, UART, IIC, ITDB02 LCD, micro SD
  • Weight 160.00g
  • Accessories : Antenna

-->
