SME SSD1963 CHIP FOR 4,3IN LCD - Displays -

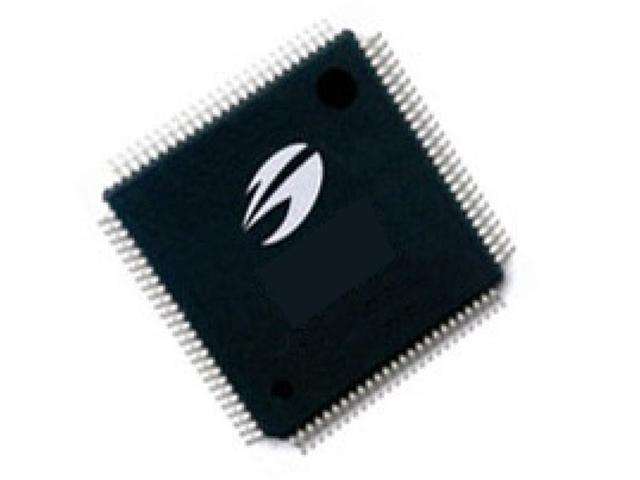

SME SSD1963 CHIP FOR 4,3IN LCD

SKU: SME SSD1963 CHIP FOR 4,3IN LCD

BRAND: Itead Studio


Sold Out

Collections: IoT, Internet of things

Type: Displays

Category: Iot, LCD Displays

1215KB Embedded Display SRAM LCD Display Controller SSD1963 chip

Overview

SSD1963 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-per-pixel.

Features

  • Display feature
    • Built-in 1215K bytes frame buffer. Support up to 864 x 480 at 24bpp display
    • Support TFT 18/24-bit generic RGB interface panel
    • Support 8-bit serial RGB interface
    • Hardware rotation of 0, 90, 180, 270 degree
    • Hardware display mirroring
    • Hardware windowing
    • Programmable brightness, contrast and saturation control
    • Dynamic Backlight Control (DBC) via PWM signal
  • MCU connectivity
    • 8/9/16/18/24-bit MCU interface
    • Tearing effect signal
  • I/O Connectivity
    • 4 GPIO pins
  • Built-in clock generator
  • Deep sleep mode for power saving
  • Core supply power (VDDPLL and VDDD): 1.2V±0.1V
  • I/O supply power (VDDIO): 1.65V to 3.6V
  • LCD interface supply power (VDDLCD): 1.65V to 3.6V



    Specification
