SONOFF 1 CH WIFI W/L 5V RELAY

SKU: SONOFF 1 CH WIFI W/L 5V RELAY

BRAND: Sonoff

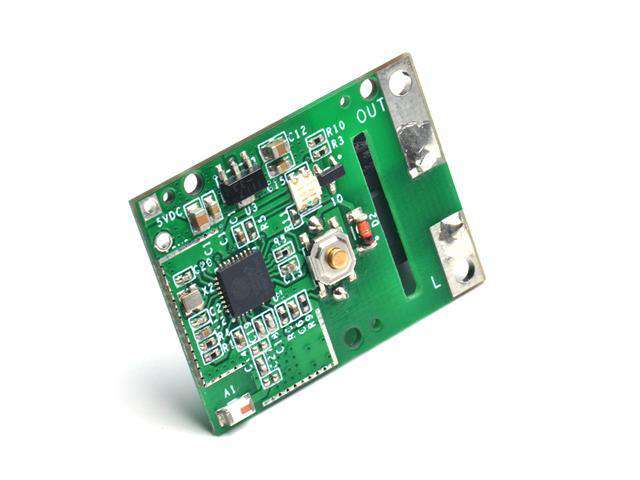

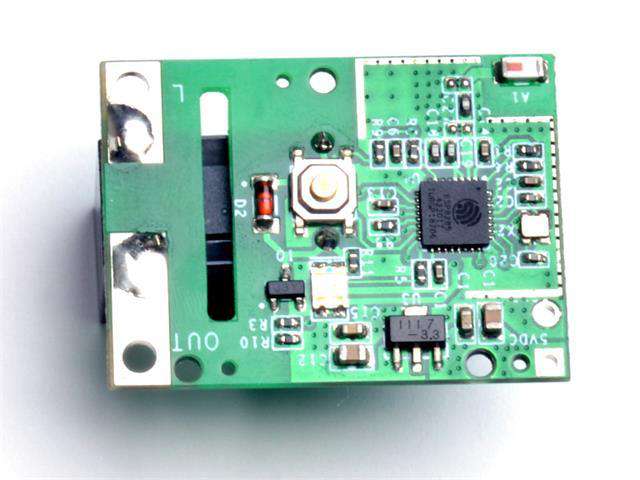

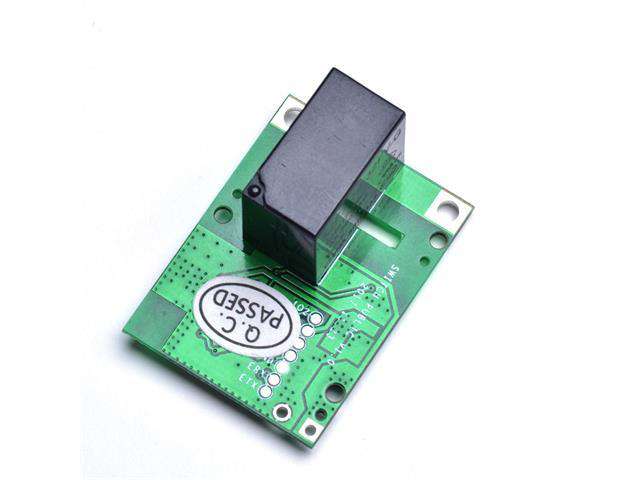

SONOFF RE5V1C - 5V Wifi Inching/Selflock Relay Module

Overview

 The 5VDC input, nano size and dry-contact output makes it different from traditional SONOFF product, this product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately.

Features

  • Nano Size
  • Dry Contact Output
  • Low Power Supply - 5VDC low voltage input
  • LAN Control – Turn on/off the device even when WiFi has no Internet access
  • App Support – Free iOS and Android mobile App eWeLink
  • Remote ON/OFF–Turn electrical devices on/off from anywhere
  • Sync Status–Real-time device status provided to App
  • Timing–Set scheduled/countdown timers to turn on/off at specified time
  • Share Control– Control your smart home together with your family
  • Scene–Turn on/off a gang of devices with one tap
  • Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
  • Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

Specification

  • Power Supply: 5V DC
  • Dry contact output
  • Max Current: 10A
  • Humidity: 5%-90%RH, Non-condensing
  • Operating Temperature: 0ºC-40ºC(32°F-104°F)
  • Nano size: 34.5x25x19mm
