The Sonoff T1 Wall Touch Switch 3 gang 86 type touch/App/ RF control luxury smart light switch. The wireless wall switch can be added to iOS/Android App eWeLink via WiFi, allowing users to remotely turn on/off connected lights or appliances separately from anywhere at any time. After successfully learning codes with 433MHz RF Remote, the touch light switch can be turneD on/off indoors. Upgrade your home to an elegant smart home, control anywhere, anytime!

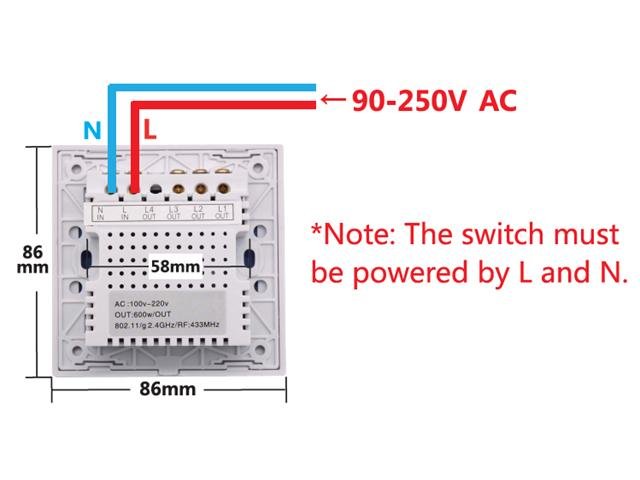

Note: the T1 should be powered up through Live and Neutral cables.

With the App eWeLink, you can create scheduled/countdown timers to auto-turn on/off devices at the specified time. You can also create scenes to turn on/off all the devices in your house with one tap. The smart wall switch works perfectly with Amazon Alexa, you can ask Alexa to turn it on/off.

• Remote ON/OFF–Turn lights on/off from anywhere
• App Support –Free iOS and Android mobile App eWeLink
• RF Remote control–Turn on/off by 433MHz RF Remote indoors
• Independent control–Control each gang separately
• Fits Old Box–seamlessly replaces your old 86 type wall light switch
• Sync Status–Real-time device status provided to App
• Timing–Set scheduled/countdown timers to turn on/off at specified time
• Share Control– Control your smart home together with your family
• Scene–Turn on/off a gang of devices with one tap
• Smart Scene–Triggered on/off by temperature, humidity or other environmental conditions
• Voice Control –Works perfectly with Amazon Alexa, Google Home

• Power Supply : 90V-250V AC
• Max. Current : 2A/250V/Gang
• Max. Power : 600W/gang
• Wireless Standard : 802.11 b/g/n & 433MHz RF
• Security Mechanism : WPA-PSK/WPA2-PSK

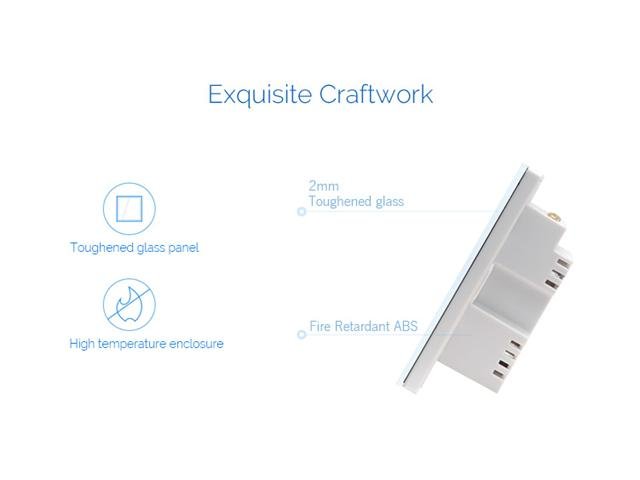

• Material : ABS V0 + Toughened Glass Panel
• Gang : 2
• Dimension : 86mm x 86mm x 32mm
• Weight : 130.0g
• Certification : CE, RoHS, FCC

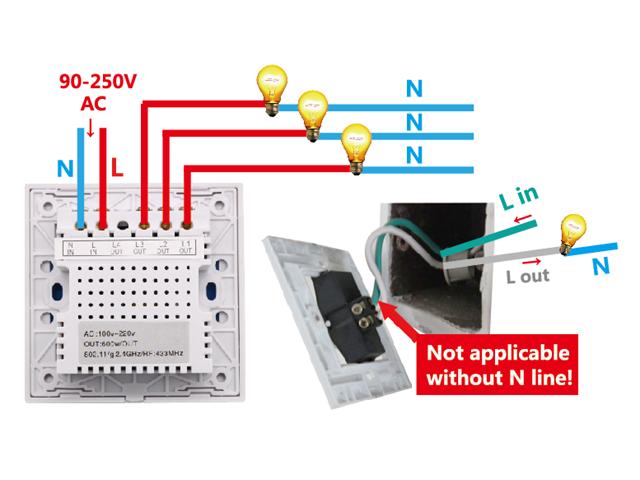

• NB. Both LIVE and NEUTRAL wires are required for operation

1. Datasheet - SME SONOFF WIFI LED TOUCH 2 GANG
