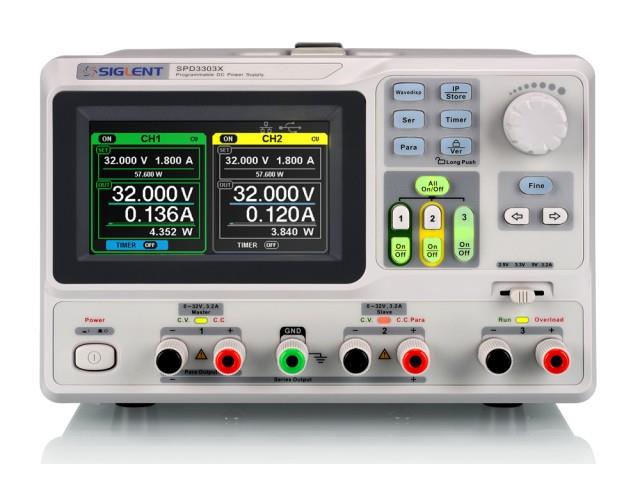

SPD3303X - Power Supplies -

SPD3303X

SKU: SPD3303X

BRAND: Siglent


In Stock
R 13,742.50 (inc VAT)
R 11,950.00 (ex VAT)

Collections: Power

Type: Power Supplies

Category: Linear Programmable DC Power Supply

Siglent Linear Programmable DC Power Supply 3CH, CH1:O/P Voltage & Current:0~32V 0~3.2A, CH2:O/P Voltage & Current:0~32V 0~3.2A, CH3:O/P Voltage & Current:2.5V/3.3V/5V 3.2A, Resolution:1mV/1ma, Display:4.3" True Colour TFT-LCD, (225×143×278mm) 8kg

Siglent Linear Programmable DC Power Supply

Overview

SPD3000X Series Linear Programmable DC Power Supply has a 4.3 inches TFT_LCD display, Supports Programmability and Real Time Wave Display, bringing a new experience to users. It has three isolated outputs: two adjustable channels and one selectable channel from 2.5V, 3.3V, and 5V. It also has output short and overload protect function, and can be used in production and development.

Feature

  • 3 independent controlled and isolated output, 32V/3.2A×2, 2.5V/3.3V/5V/3.2A×1, total 220W
  • 5 digits Voltage, 4 digits Current Display, Minimum Resolution: 1mV/1mA
  • Supports panel timing output functions
  • 4.3 inch true color TFT-LCD 480x272 display
  • 3 types of output modes: independent, series, parallel
  • 100V/120V/220V/230V compatible design to meet the needs of different power grids.
  • Intelligent temperature-controlled fan, effectively reducing noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/ recall, supports data storage space expansion
  • Provides PC software: Easypower, supports SCPI, LabView driver

Downloads

Additional Information

Device Power Supply
Type Siglent Linear | Programmable | DC
