SPF 3 AXIS ACCELEROMTR MMA7361L

SKU: SPF 3 AXIS ACCELEROMTR MMA7361L

BRAND: Sparkfun


COM-09605 3-Axis Analog Accelerometer - Low Power MMA7361LR1 - 2 measuring ranges - ±1.5g or ±6g. 1-pole low pass filter, temp compensation, self test.

Overview

The MMA7361LR1 is a low power, three-axis analog accelerometer. The sensor has a g-Select input which allows for the selection between two measuring ranges - ±1.5g or ±6g.

Other features include signal conditioning, a 1-pole low pass filter, temperature compensation, self test, and 0g-detect which detects linear freefall. Zero-g offset and sensitivity are factory set and require no external devices. The MMA7361L also includes a sleep mode.

The sensor works on power between 2.2 and 3.6VDC (3.3V optimal), and typically consumes just 400µA of current. All three axes have their own analog output

Features

  • Two selectable measuring ranges (±1.5g, ±6g)
  • Low current consumption: 400 µA
  • Sleep mode: 3 µA
  • Low voltage operation: 2.2 V - 3.6 V
  • High sensitivity (800 mV/g at 1.5g)
  • Fast turn on time (0.5 ms enable response time)
  • Self test for freefall detect diagnosis
  • 0g-Detect for freefall protection
  • Signal conditioning with low pass filter
  • Robust design, high shocks survivability
  • RoHS compliant
  • Environmentally preferred product
  • Low cost

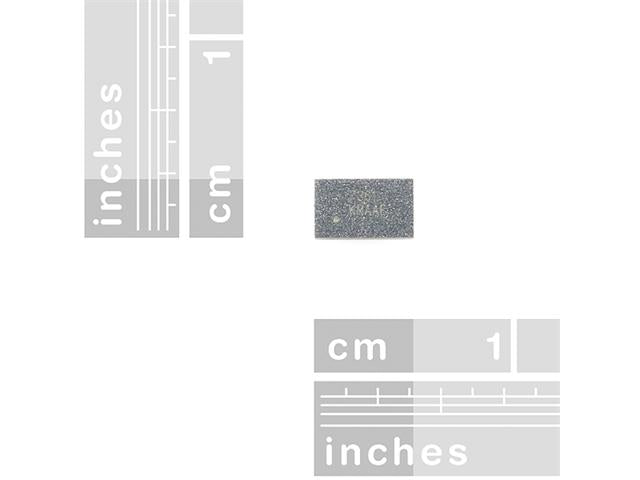

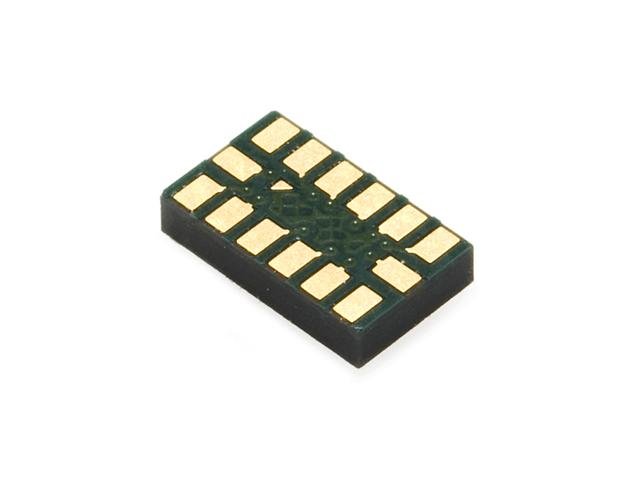

  • Dimensions: 3.0 x 5.0 x 1.0 mm (LGA-14-pin package)

Additional Information

Keywords arduino, three axis, accelerometer, mma7361
Device Sensor
Type IC | Accelerometer
References Sparkfun Page
