SPF MONSTER MOTOR SHIELD

Name: SPF MONSTER MOTOR SHIELD - Communica [Part No: SPF MONSTER MOTOR SHIELD]
Brand: Sparkfun
SKU: SPF MONSTER MOTOR SHIELD
Price: 833.33 ZAR
Availability: OutOfStock

SKU: SPF MONSTER MOTOR SHIELD

BRAND: Sparkfun

Sold Out
R 958.33_{(inc VAT)}
R 833.33_{(ex VAT)}

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, Motor Shields

DEV-10182 High Current Dual Motor Driver Shield with 16V max Voltage, 14A Continuous and 30A max Current

Overview

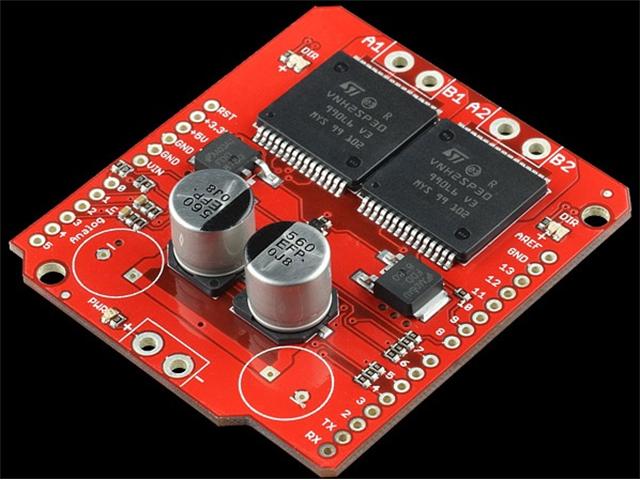

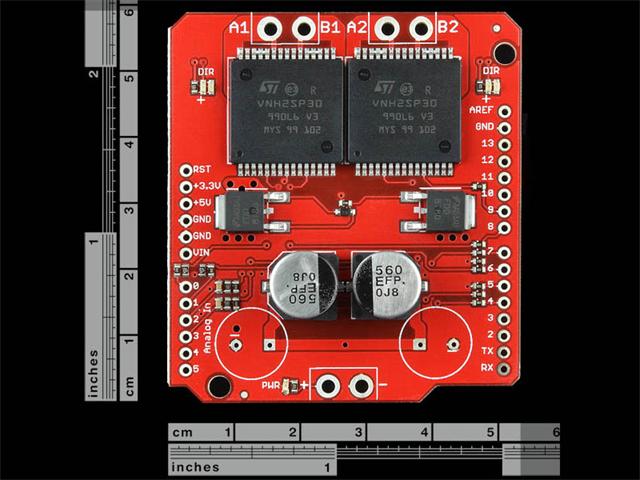

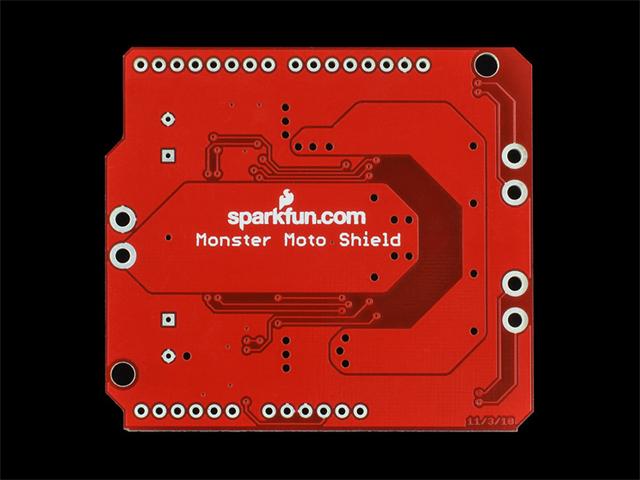

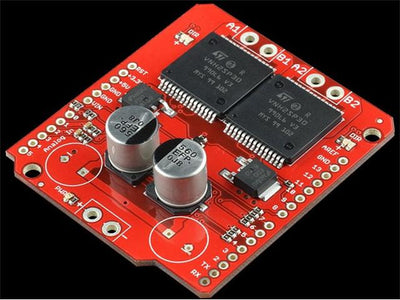

This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors. The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note : When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Features

Voltage max : 16V
Maximum current rating : 30A
Practical Continuous Current : 14A
Current Sensing available to Arduino Analog Pin
MOSFET on-resistance : 19mΩ (per leg)
Maximum PWM Frequency : 20 kHz
Thermal Shutdown
Undervoltage and Overvoltage Shutdown

Downloads

Additional Information

Device	Shield
Type	Dual Motor Driver \| High Current
Highlights	16V max Voltage \| 14A Continuous Current \| 30A max Current
References	Example Code
