SPF STEPPER MOTOR NEMA16 12V

SKU: SPF STEPPER MOTOR NEMA16 12V

BRAND: SparkFun

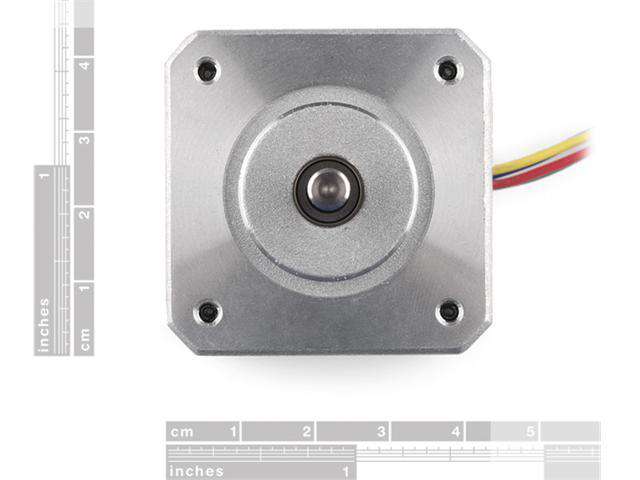

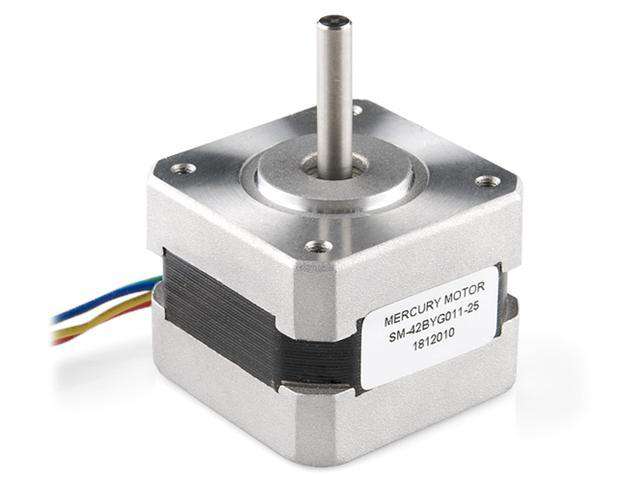

ROB-09238 Bipolar Stepper Motor NEMA16 12V with a 4-wire Cable attached.

Overview

This is a simple, but very powerful Bipolar Stepper Motor with a 4-wire Cable attached.

Features

  • Step Angle (degrees) : 1.8
  • 2 Phase
  • Rated Voltage : 12V
  • Rated Current : 0.33A
  • Holding Torque : 2.3kg*cm
  • 5mm Diameter Drive Shaft
  • Winding Resistance : 32.6 O
  • Winding Inductance : 48 mH
  • Max Flux Linkage : 1.8 Vs
  • Maximum Detent Torque : 0.016 N.M
  • Total inertia (kg.m.m) : 3.5 Kg.m.m
  • Total friction (kg.m/s) : 4 Kg.m/s
  • NEMA 16 Mounting Hole Pattern (31mm)
  • Motor Width : 42mm
