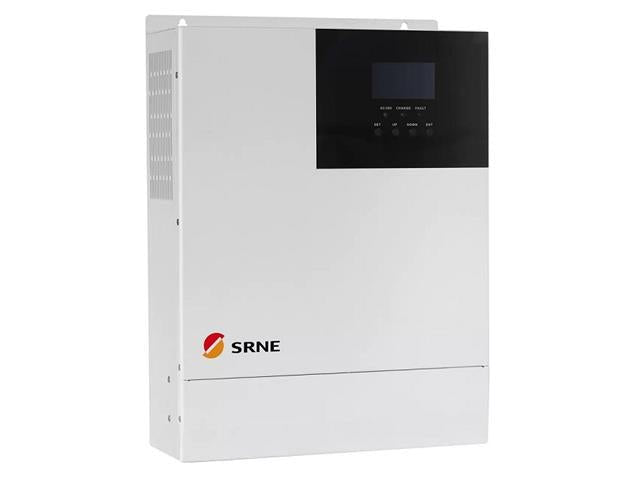

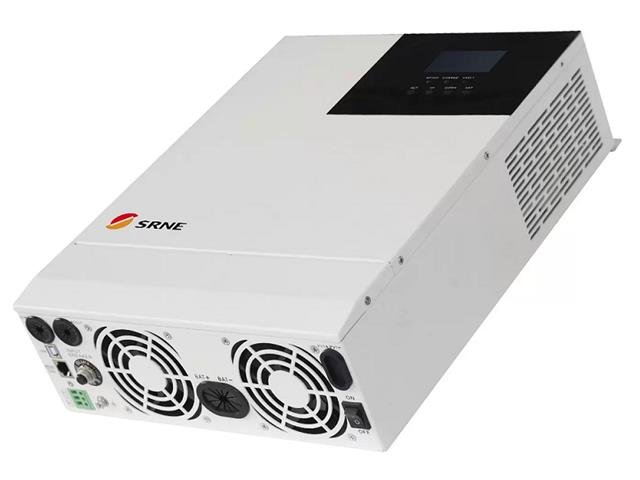

SRNE Hybrid Pure Sine Wave Inverter 3KW 24V, Built-In MPPT Voltage Range:30~95VDC, Max Charge Current:80A, Max PV OCV:100VDC, 50Hz/60Hz, O/P Volatge:230VAC, Max PV Input PWR:1400W, IP20, USB/RS485(WIFI/GPRS) 378x280x103mm, 6.2Kg
Hybrid Pure Sine Wave Inverter
Specifications
AC Mode
- Rated Input Voltage: 230VAC
- Input Voltage Range: 90VAC to 280VAC
- Frequency: 50Hz / 60Hz (Auto detection)
- Overload / Short Circuit Protection: Circuit Breaker
- Efficiency: >95%
- Conversion Time: 10ms
- Maximum Bypass Overload Current: 30A
Inverter Mode
- Output Voltage Waveform: Pure Sine Wave
- Rated Output Power: 3000W
- Power Factor: 1
- Rated Output Voltage: 230VAC
- Output Frequency: 50Hz / 60Hz
- Efficiency: >92%
- Loaded Motor Capability: 2HP
- Output Short Circuit Protection: Circuit Breaker
- Bypass Breaker: 30A
- Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
- Battery Voltage Range: 20VDC – 33VDC
AC Charging
- Battery Type: Lead Acid / Lithium
- Maximum Charging Current: 80A
- Charging Voltage Range: 20VDC to 33VDC
- Short Circuit Protection: Circuit Breaker and Blown Fuse
- Circuit Breaker: 30A
PV Charging
- Maximum PV Open Circuit Voltage: 100VDC
- PV Operating Voltage Range: 30VDC to 100VDC
- MPPT Voltage Range: 30VDC to 85VDC
- Maximum Input PV Power: 1400W
- PV Charging Current Range: 0A to 60A (Adjustable)
- Charging Short Circuit Protection: Blown Fuse
- Wiring Protection: Reverse Polarity Protection
Environment Limit
- Ingress Protection: IP20
- Operating Temperature Range: -15°C to +55°C
- Humidity Range: 5% to 95% (Conformal Coating Protection)
- Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
- Communication: USB / RS485(WIFI/GPRS) / Dry Node Control
Downloads
Additional Information
| Device |
Inverter |
| Type |
Hybrid | Pure Sine Wave |
