SS5GL111

Name: SS5GL111 - Communica [Part No: SS5GL111]
Brand: Communica
SKU: SS5GL111
Price: 18 ZAR
Availability: InStock

SKU: SS5GL111

BRAND: Communica

R 20.70_{(inc VAT)}
R 18.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Micro Switches

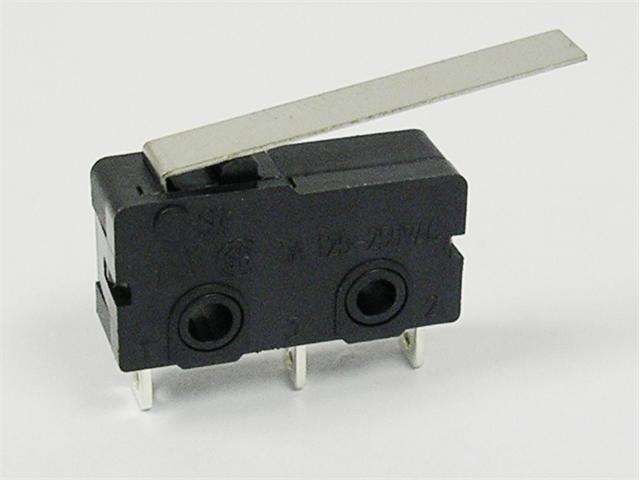

Sub-Miniature Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • Solder-Lug • Long-Lever Actuator

Overview

Features

Contact Resistance (initial) : Max. 300mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : 0.1A - Min.1,000,000 operations
Other ratings - Min 6,000 operations
Electrical Operating Frequency : 0.1A - 120 operations per minute
Other ratings - 10~30 operations per minute
Mechanical Service Life : Min 10,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Long-Lever
Termination	Solder-Lug
Switch Circuit	1C-SPDT(CO)
Electrical Rating	5A-250VAC
No.of Poles/Pins	3Pin

Enhance your projects with the SS5GL111 Sub-Miniature Micro Switch, featuring a reliable long-lever actuator and a robust 5A-250VAC rating. Designed for durability, it offers over 1 million electrical operations and withstands extreme conditions, making it ideal for various applications. Experience precision and longevity with this compact switch—perfect for your electronic needs!
