SIGLENT Spectrum Analyzer 9kHz~1.5GHz, TFT LCD Multi-Touch Screen 10.1Inch, Resolution Bandwidth:1Hz~1MHz, Phase Noise:<-99 dBc/Hz, Total Amplitude Acc:< 1.2dB, DANL:-156dBm/Hz, Tracking Generator:100kHz~1.5GHz, 393×207×116.5mm, 4.40kg
9kHz~1.5GHz Spectrum Analyzer
Overview
Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 kHz to 1.5 / 2.1 GHz / 3.2 GHz. The Plus family adds features such as 10.1 inch Multi-Touch screen display, mouse and keyboard control. A web browser-based software control via LAN is also included. With their lightweight, small size, and friendly user interface, the SSA3000 Pluses present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.
Features
- All-Digital IF Technology
- Frequency Range from 9 kHz up to 3.2 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Total Amplitude Accuracy < 0.7 dB
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Standard Preamplifier
- Up to 3.2 GHz Tracking Generator Kit (Opt.)
- Reflection Measurement Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- EMI Pre-compliance Measurements Kit (Opt.)
- 10.1 lnch WVGA（1024×600）Display
Downloads
Additional Information

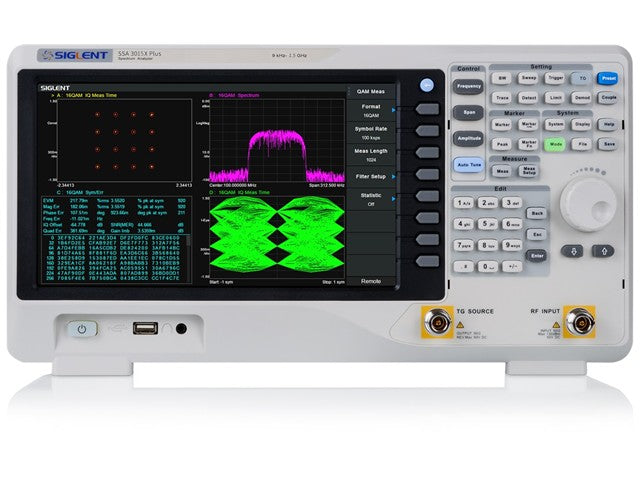

Experience precision with the SSA3015X PLUS Spectrum Analyzer, featuring a 10.1-inch multi-touch display and a frequency range of 9 kHz to 1.5 GHz. Perfect for research, production, and maintenance, it offers advanced measurement capabilities and user-friendly controls, ensuring accurate results for your technical needs. Elevate your analysis with this lightweight, powerful tool designed for reliability and ease of use.
