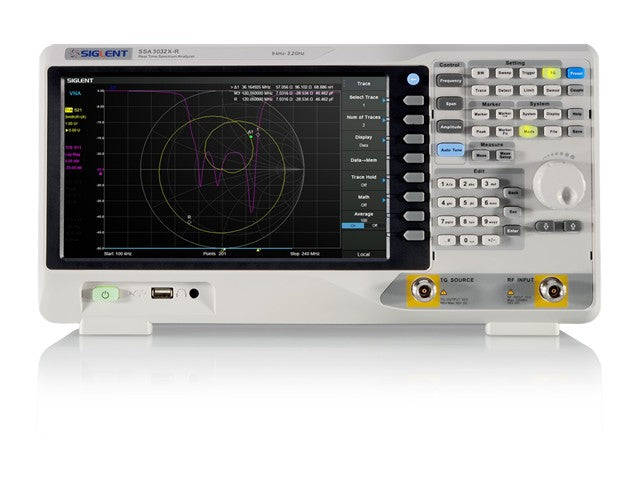

SSA3032X-R

Name: SSA3032X-R - Communica [Part No: SSA3032X-R]
Brand: Siglent
SKU: SSA3032X-R
Price: 77500 ZAR
Availability: InStock

SKU: SSA3032X-R

BRAND: Siglent

R 89,125.00_{(inc VAT)}
R 77,500.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: New Arrivals, Test & Measurement

Type: Analyzer

Category: New, Real-Time Spectrum Analyser.

SIGLENT Spectrum Analyzer 9kHZ~3.2GHz, TFT LCD Multi-Touch Screen 10.1INCH, Resolution Bandwidth:1Hz~3MHz, Phase Noise:<-98 dBc/Hz, Total Amplitude Acc:< 0.7dB, DANL:-165dBm/Hz, up to 40MHz Real-Time Analysis Bandwidth, 393×207×116.5mm, 4.7kg

9kHZ~3.2GHz Spectrum Analyzer

Overview

The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF spectrum, signal analysis and network analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, and analog/digital modulation analysis, EMI pre-compliance test. They also provide a 1-path-2-port vector network analyzer and a distance-to-fault locator for S-parameter measurement, cable and antenna testing. Applications include broadcast monitoring/evaluation, cellular site, IoT, Wlan and Bluetooth, surveying, research and development, education, production, and maintenance.

Features

Spectrum Analyzer Frequency Range from 9 kHz to 3.2 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
Level Measurement Uncertainty < 0.7 dB (Typ.)
1 Hz Minimum Resolution Bandwidth (RBW)
Preamplifier and Tracking Generator Standard
Vector Network Analyzer Mode Standard
Distance to Fault Mode Standard
Up to 40 MHz Real-Time Analysis Bandwidth
100% POI 7.20 μs, Dynamic Range 60 dB

Specifications

Model	SSA3032X-R
Frequency Range	9 kHz ~ 3.2 GHz
Resolution Bandwidth	1 Hz ~ 3 MHz
Displayed Average Noise Level	-165 dBm/Hz
SSB Phase Noise	< -98 dBc/Hz
Third-Order Intercept (TOI)	+14 dBm
Total Amplitude Accuracy	< 0.7 dB
Tracking Generator	100 kHz – 3.2 GHz
Real-Time Bandwidth	25 MHz, 40 MHz (Option)
RTSA SFDR	60 dB
100% POI	7.20 μs
RTSA Measurement	Density, Spectrogram, 3D, PvT
VNA Measurement	Vector S11, Vector S21
VNA Dynamic Range	90 dB
Distance to Fault	Timing Domain Analysis, Locator
Touch Screen	Multi-touch, Mouse & Keyboard Supported
Advanced Measurement	CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Modulation Analysis	AM, FM, PM, ASK, FSK, MSK, PSK, QAM
EMI Measurement	EMI Filter, Quasi-Peak Detector, Log Scale, Limit Line
Communication Interface	LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability	SCPI / LabVIEW / IVI (USB-TMC, VXI-11, Socket, Telnet)
Remote Controller	NI-MAX, Web Browser, Easy Spectrum Software, File Explorer

Downloads

Datasheet - SSA3032X-R

Additional Information

Device

Spectrum Analyzer

Discover the SIGLENT SSA3032X-R Spectrum Analyzer, a cutting-edge tool for RF signal analysis with a frequency range of 9kHz to 3.2GHz. Featuring a 10.1-inch multi-touch screen and real-time analysis bandwidth of up to 40MHz, this analyzer ensures accurate measurements with minimal noise. Ideal for professionals in communication, research, and education, it simplifies complex spectrum challenges while enhancing your data analysis capabilities.
